Jeep
>>
2010
>>
Liberty Limited, 4WD, Part Time
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Occupant Classification Module (OCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1B7A-Passenger Seat Weight Sensor 3 - Left Front Input Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

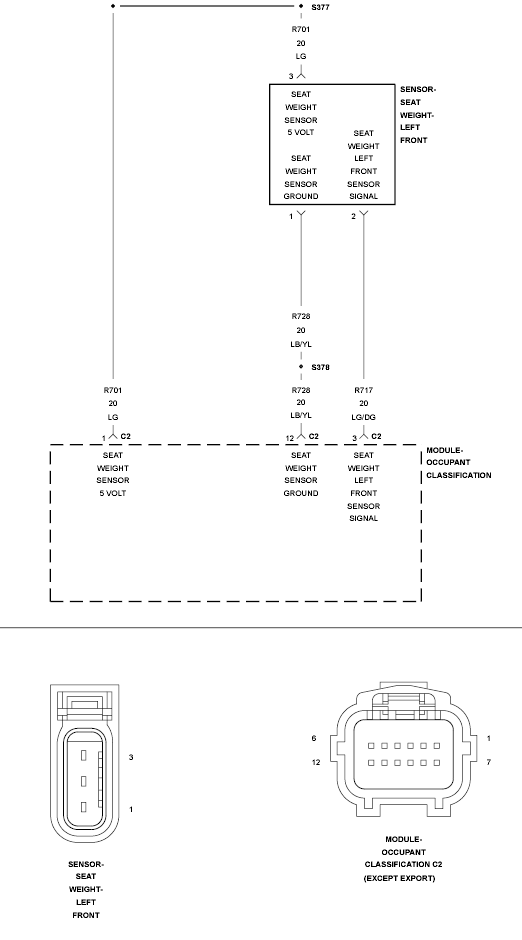

Fig 1: Left Front Seat Weight Sensor Circuit Schematic
