Diagnostic Test
- CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT CLASSIFICATION MODULE (OCM) NOTE: Make sure that the battery is fully charged.
- Turn the ignition on, then off, and then on again.
- With the scan tool, read Occupant Classification Module (OCM) DTCs.
Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?
Yes
- Diagnose and repair the DTC. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Diagnosis and Testing for a complete list of DTCs.
No
- Go to step 2
- VERIFY THAT DTC B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW IS ACTIVE
- With the scan tool, read OCM DTCs.
Does the scan tool display active: B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW?
Yes
- Go to step 3
No
- Perform the OCS INTERMITTENT TEST. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
- With the scan tool, read OCM DTCs.
- VERIFY THAT DTC B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW AND B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH ARE ACTIVE AT THE SAME TIME
- With the scan tool, read OCM DTCs.
Does the scan tool display active: B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW DTC AND B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH DTC AT THE SAME TIME?
Yes
- See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Diagnosis and Testing and perform B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH diagnostic test.
No
- Go to step 4
- With the scan tool, read OCM DTCs.
- INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Using the wiring diagram/schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
Are any of these conditions present?
Yes
- Replace the Passenger Seat Harness in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.No
- Go to step 5
- Using the wiring diagram/schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
- VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY
- Verify that the Passenger Seat Harness is routed correctly.
Is the Passenger Seat Harness routed correctly?
Yes
- Go to step 6
No
- Reroute the Passenger Seat Harness as necessary.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
- Verify that the Passenger Seat Harness is routed correctly.

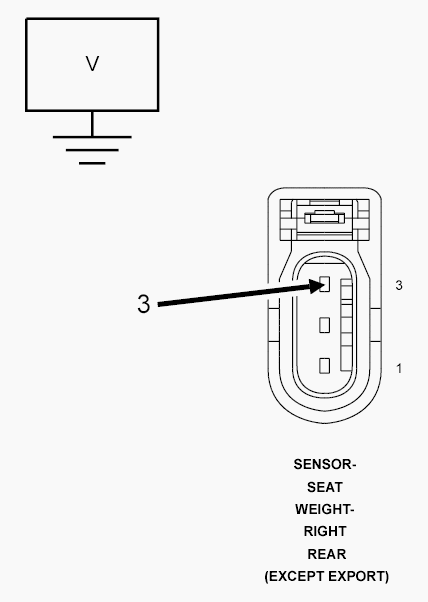

- CHECK VOLTAGE OF (R701) SEAT WEIGHT SENSOR 5-VOLT CIRCUIT
- Disconnect the Right-Rear Seat Weight Sensor connector.WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Measure the voltage of the (R701) Seat Weight Sensor 5-volt circuit.
Is the voltage above 4.8 volts?
Yes
- Go to step 7
No
- Go to step 9
- Disconnect the Right-Rear Seat Weight Sensor connector.

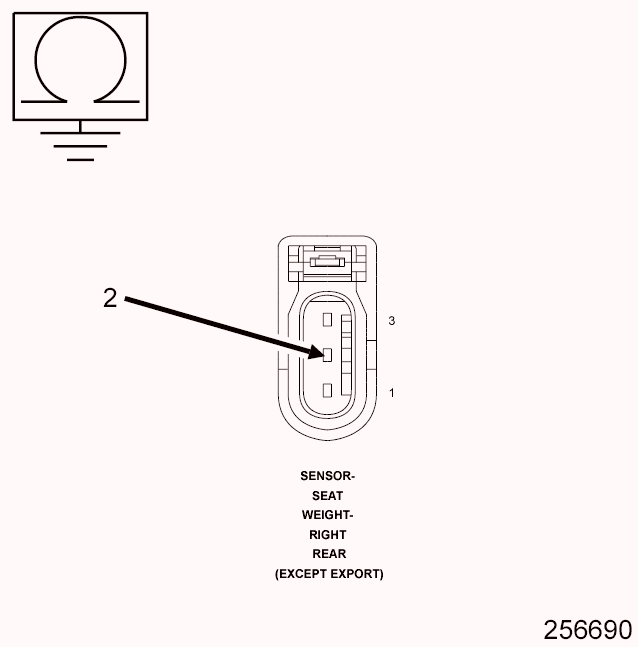

- CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND
Courtesy of CHRYSLER LLC
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.- Disconnect the OCM C2 connector.
- Measure the resistance of the (R706) RT-RR Seat Weight Sensor Signal circuit between ground and the OCM C2 connector.
Is the resistance below 5.0 Ohms?
Yes
- Replace the Passenger Seat Harness in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.No
- Go to step 8
- CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR AN OPEN
- Measure the resistance of the (R706) RT-RR Seat Weight Sensor Signal circuit between the OCM C2 connector and the Right-Rear Seat Weight Sensor connector.
Is the resistance below 5.0 Ohms?
Yes
- Replace the Right-Rear Seat Weight Sensor in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
- If the B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW returns active, go to 10
No
- Replace the Passenger Seat Harness in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
- Measure the resistance of the (R706) RT-RR Seat Weight Sensor Signal circuit between the OCM C2 connector and the Right-Rear Seat Weight Sensor connector.

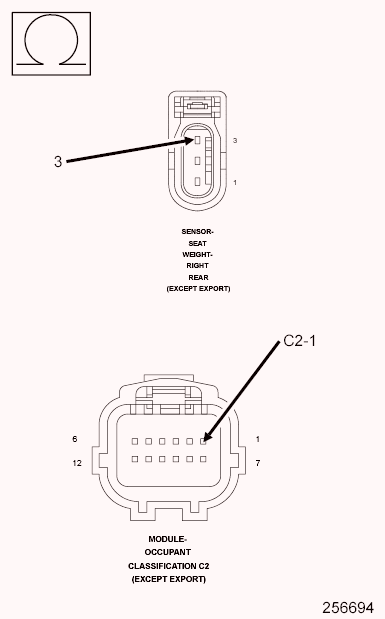

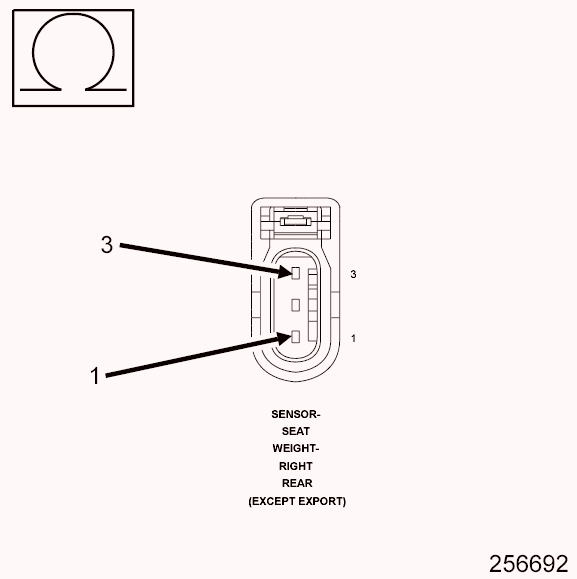

- CHECK (R701) SEAT WEIGHT SENSOR 5-VOLT CIRCUIT FOR AN OPEN
- Disconnect the OCM C2 connector.
- Measure the resistance of the (R701) Seat Weight Sensor 5-volt circuit between the OCM C2 connector and the Right-Rear Seat Weight Sensor connector.
Is the resistance below 5.0 Ohms?
Yes
- Replace the OCM in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
WARNING: If the Occupant Classification Module (OCM) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and may result in possible serious or fatal injury.No
- Replace the Passenger Seat Harness in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
- REPLACE THE OCCUPANT CLASSIFICATION MODULE WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
View repair
Yes
- Replace the OCM in accordance with the Service Information.
- Perform the RE-ZERO OCM SEAT WEIGHT SENSORS diagnostic procedure. See DTC-Based Diagnostics/MODULE, Occupant Classification (OCM) - Standard Procedure .
WARNING: If the Occupant Classification Module (OCM) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and may result in possible serious or fatal injury.
