Memory Seat Module (MSMD) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D63-Power Seat Switch Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

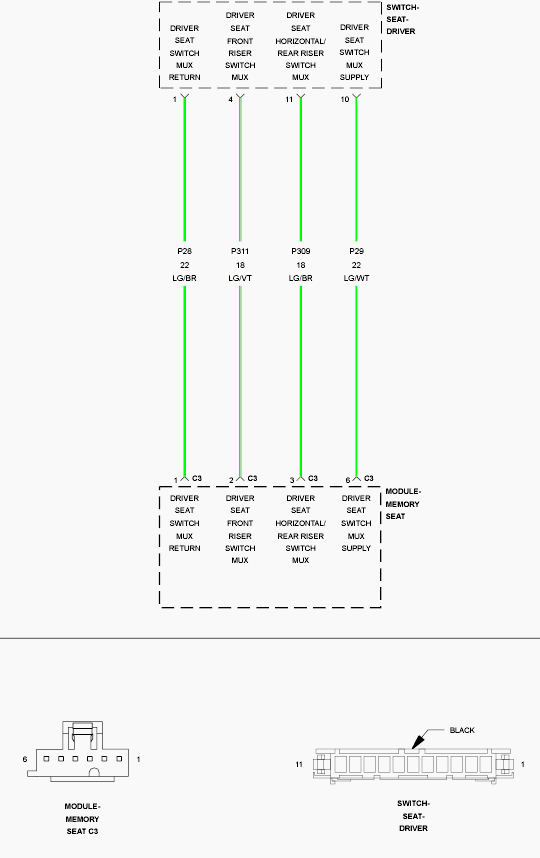

Fig 1: Power Seat Switch Circuit Schematic
Courtesy of CHRYSLER LLC
