P2016-Intake Manifold Runner Position Sensor Circuit Low: Notes

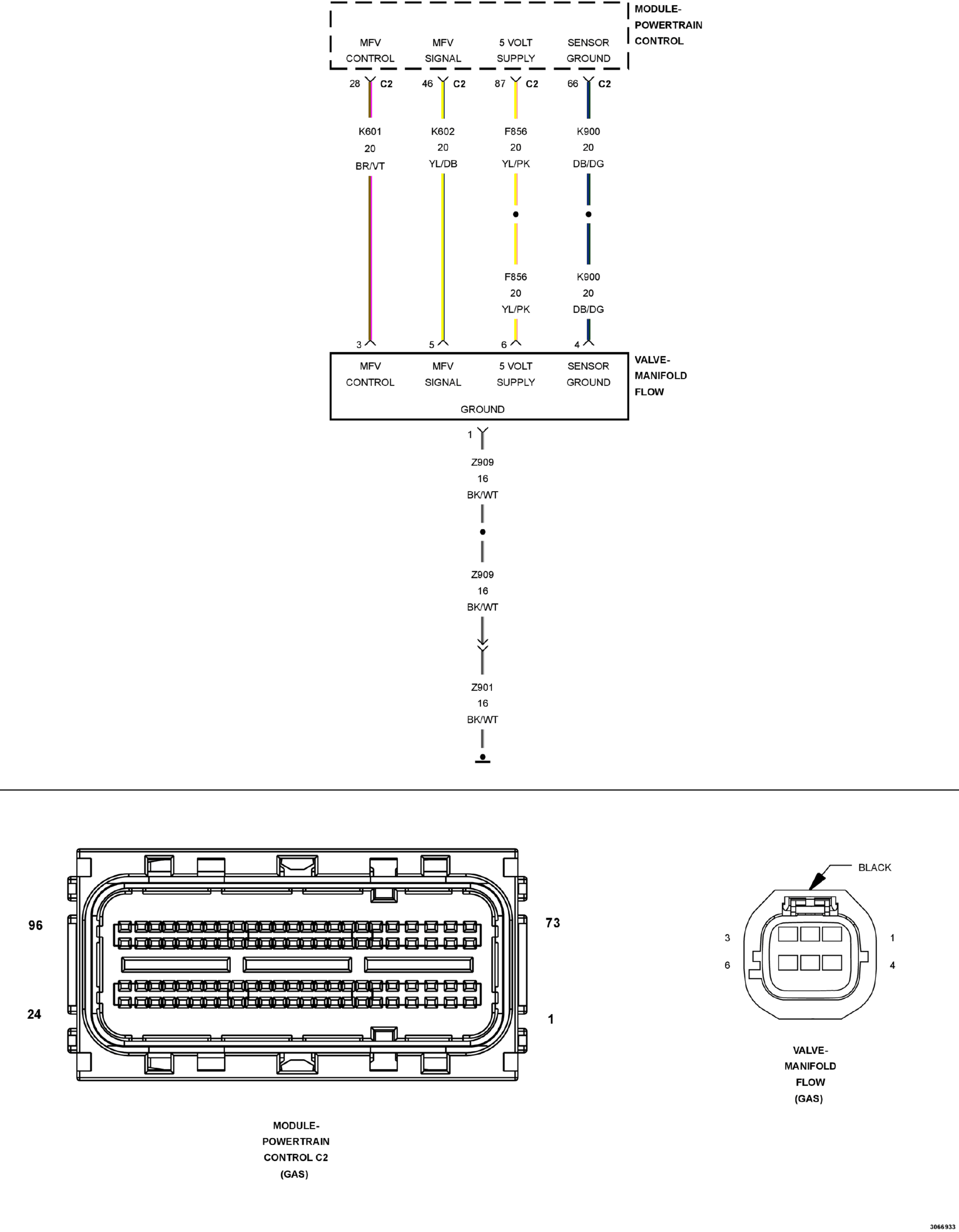

Fig 1: Manifold Flow Valve Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
