Module-HVAC Control (D3828A)

Harness-Family: IP

Color: GREEN

Gender: FEMALE

Part Number: 7283-9079-60

Part Description: YESC KAIZEN UNSEALED Female SUB ASSY

Connector No: D3828A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 16

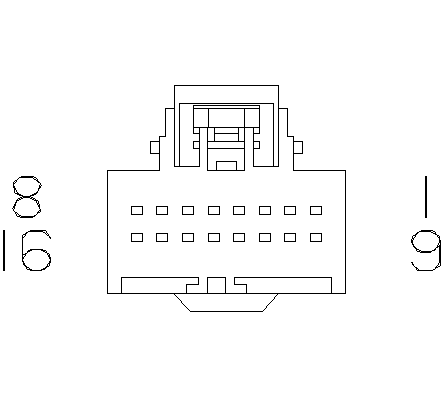

Fig 1: Module-Hvac Control Connector End View

Courtesy of CHRYSLER

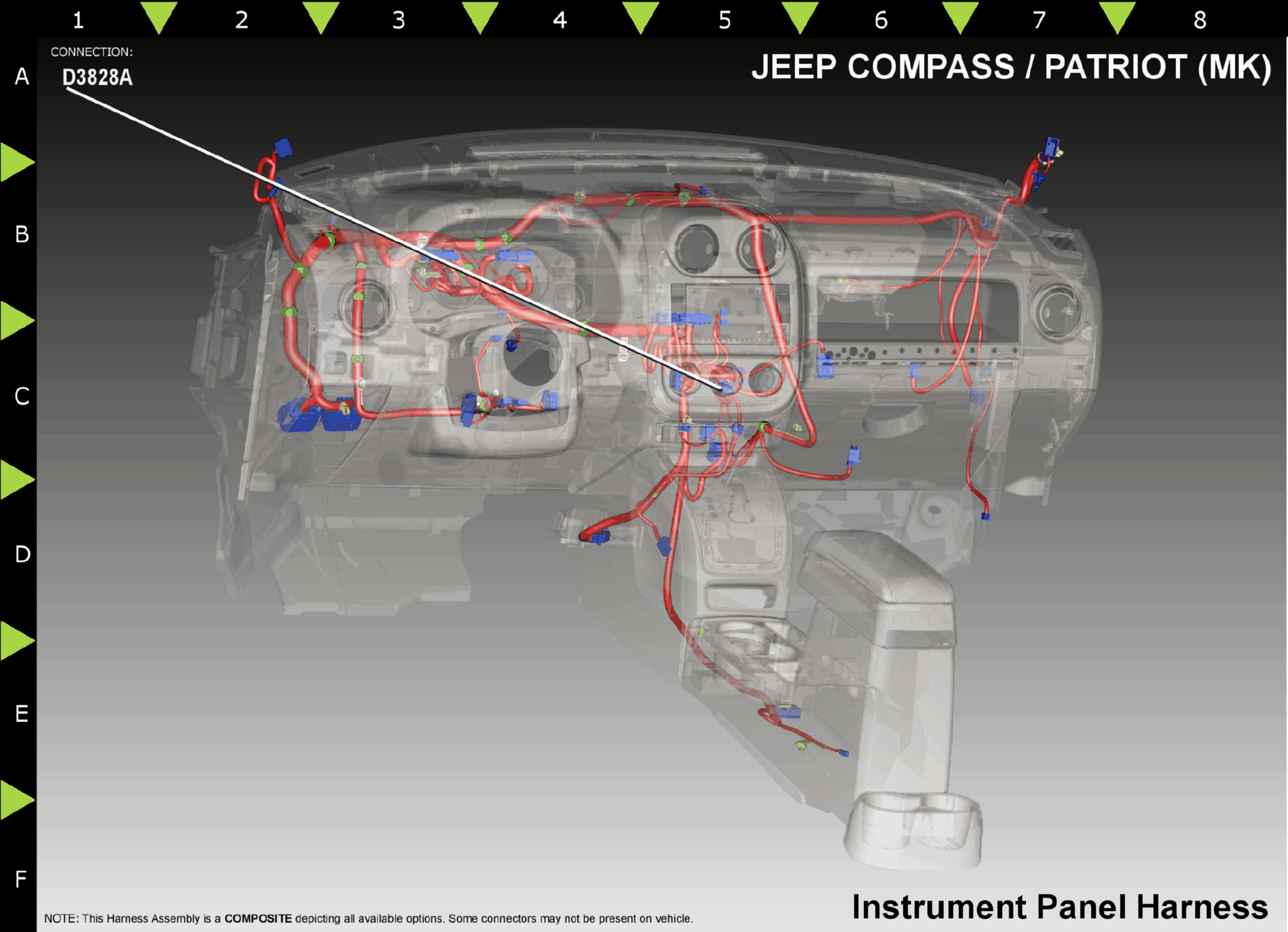

Fig 2: Module-Hvac Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C56

DB/LB

BLOWER CONTROL

N/A

A417

RD/DG

FUSED B(+)

N/A

F929

PK/RD

FUSED IGNITION SWITCH OUTPUT (RUN)

N/A

Z903

BK/LB

GROUND

N/A

D54

WT/PK

CAN B (-)

N/A

D55

WT/OR

CAN B (+)

N/A

C121

DB/DG

SENSOR GROUND

N/A

C21

DB/LG

EVAPORATOR TEMPERATURE SENSOR SIGNAL

N/A

C32

DB/TN

RECIRCULATION DOOR DRIVER

N/A

C35

LB/OR

MODE DOOR DRIVER

N/A

C61

DB/LG

BLEND DOOR DRIVER

N/A

C34

DB/LB

COMMON DOOR DRIVER

N/A

C830

DB/YL

IR SENSOR RETURN

N/A

C83

DB/LG

IR SENSOR SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
