Module-Intrusion Transceiver C1 (D3851A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 776204-2

Part Description: INSULATOR

Connector No: D3851A

Option: Standard

Repair Kit Part Number: 05183472AA

Cavity Count: 6

Fig 1: Module-Intrusion Transceiver C1 Connector End View

Courtesy of CHRYSLER

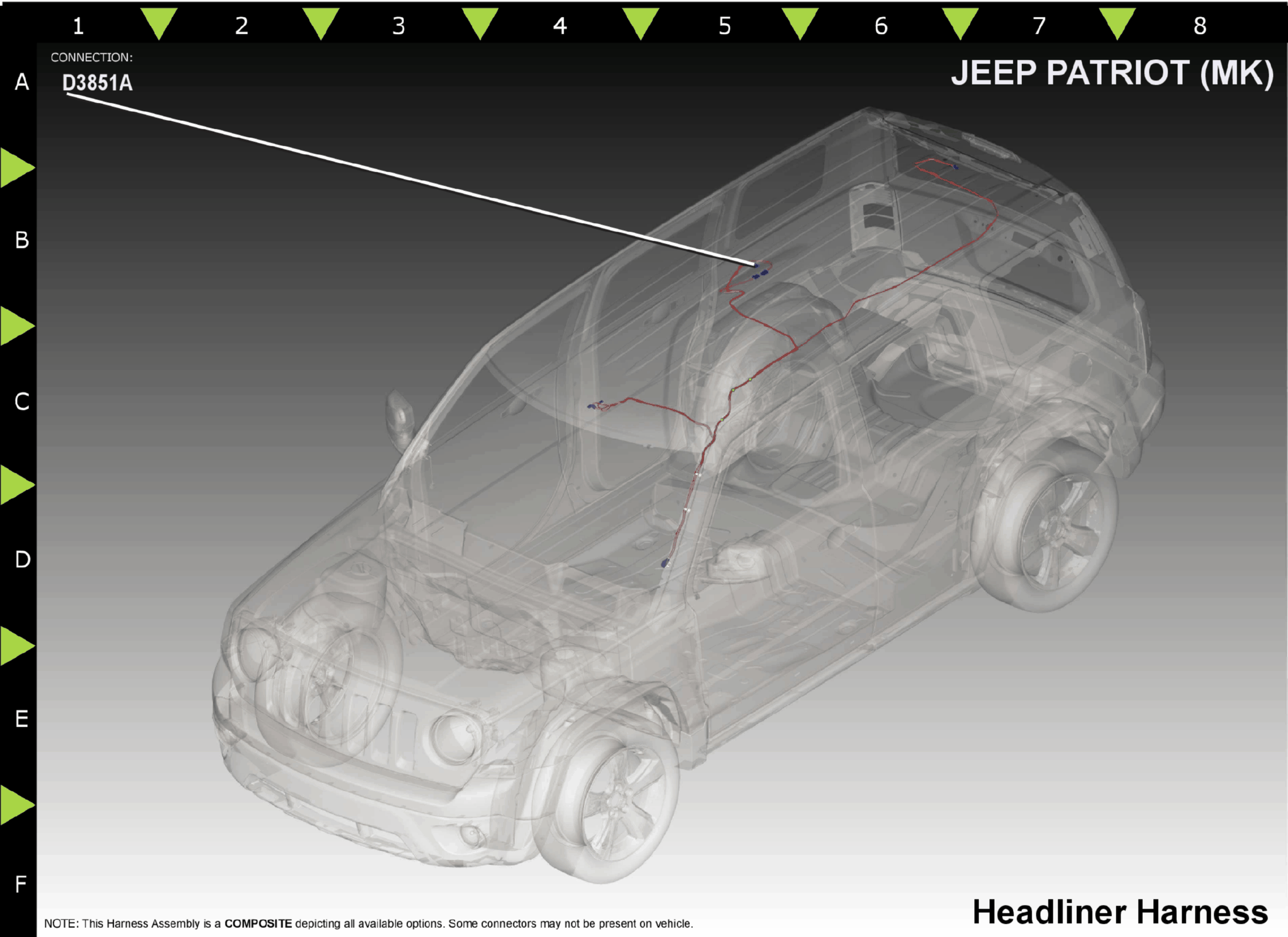

Fig 2: Module-Intrusion Transceiver C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A415

RD/TN

FUSED B(+)

N/A

D55

WT/OR

CAN B (+)

N/A

D54

WT/PK

CAN B (-)

N/A

D96

WT/BR

SIREN SIGNAL CONTROL

N/A

Z903

BK/WT

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
