Module-Intrusion Transceiver C2 (D3851B)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 4707041

Part Description: Not Available

Connector No: D3851B

Option: Standard

Repair Kit Part Number: 68057308AA

Cavity Count: 3

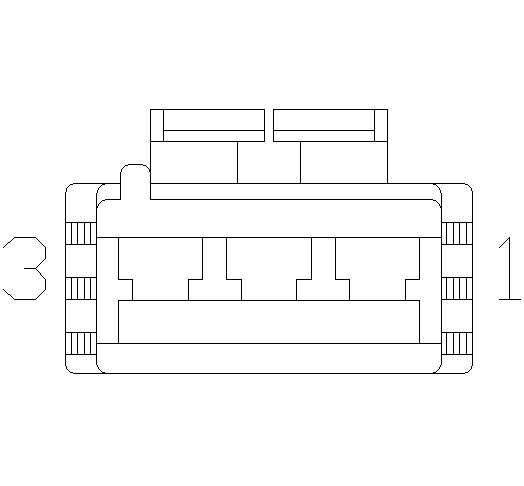

Fig 1: Module-Intrusion Transceiver C2 Connector End View
GCWD1016831Courtesy of CHRYSLER

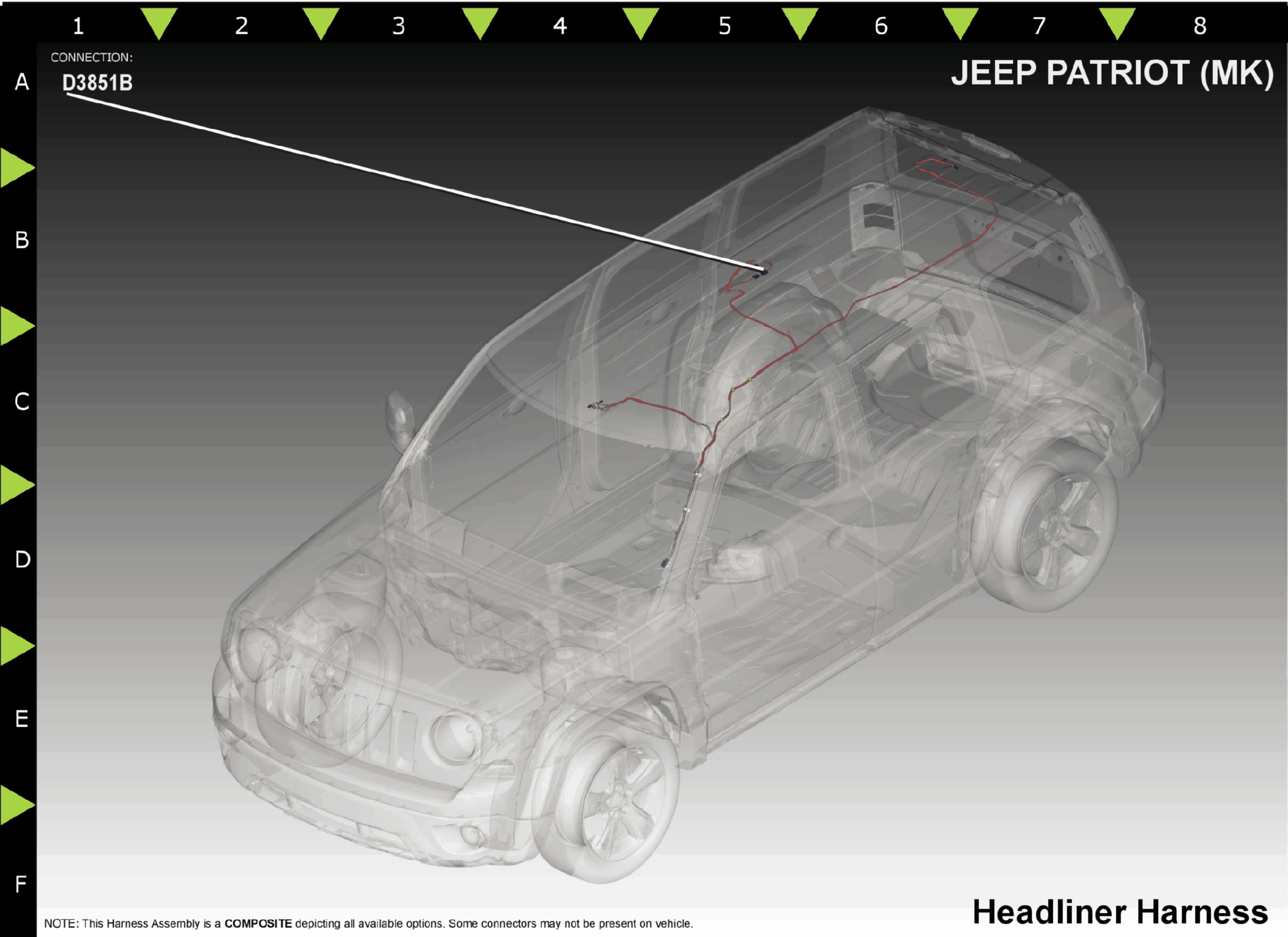

Fig 2: Module-Intrusion Transceiver C2 Component Location
GCWD1198435Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 M24 YL/WT 22 COURTESY LAMPS DRIVER N/A
3 Z903 BK/WT 22 GROUND N/A
(1) Pins not listed are not used for this connector
