Module-Powertrain Control C1 (Gas) (D3838A)

Harness-Family: Engine_Compartment

Color: GRAY

Gender: FEMALE

Part Number: 1924939-1

Part Description: GPEC II INSULATOR ASSEMBLY, RIGHT EXIT

Connector No: D3838A

Option: GAS

Repair Kit Part Number: 05083222AA

Cavity Count: 96

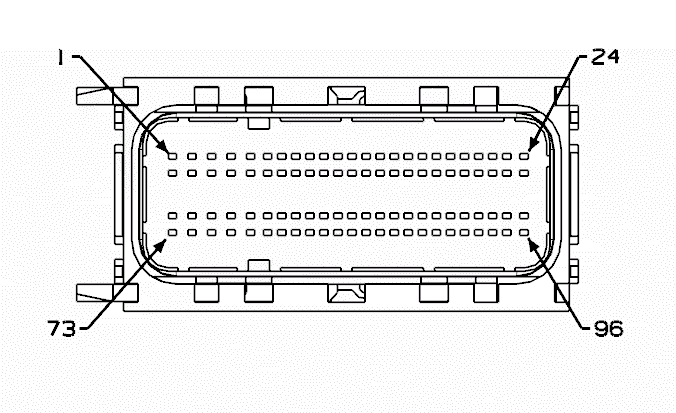

Fig 1: Module-Powertrain Control C1 Connector End View (Gas)
GCWD1013152Courtesy of CHRYSLER

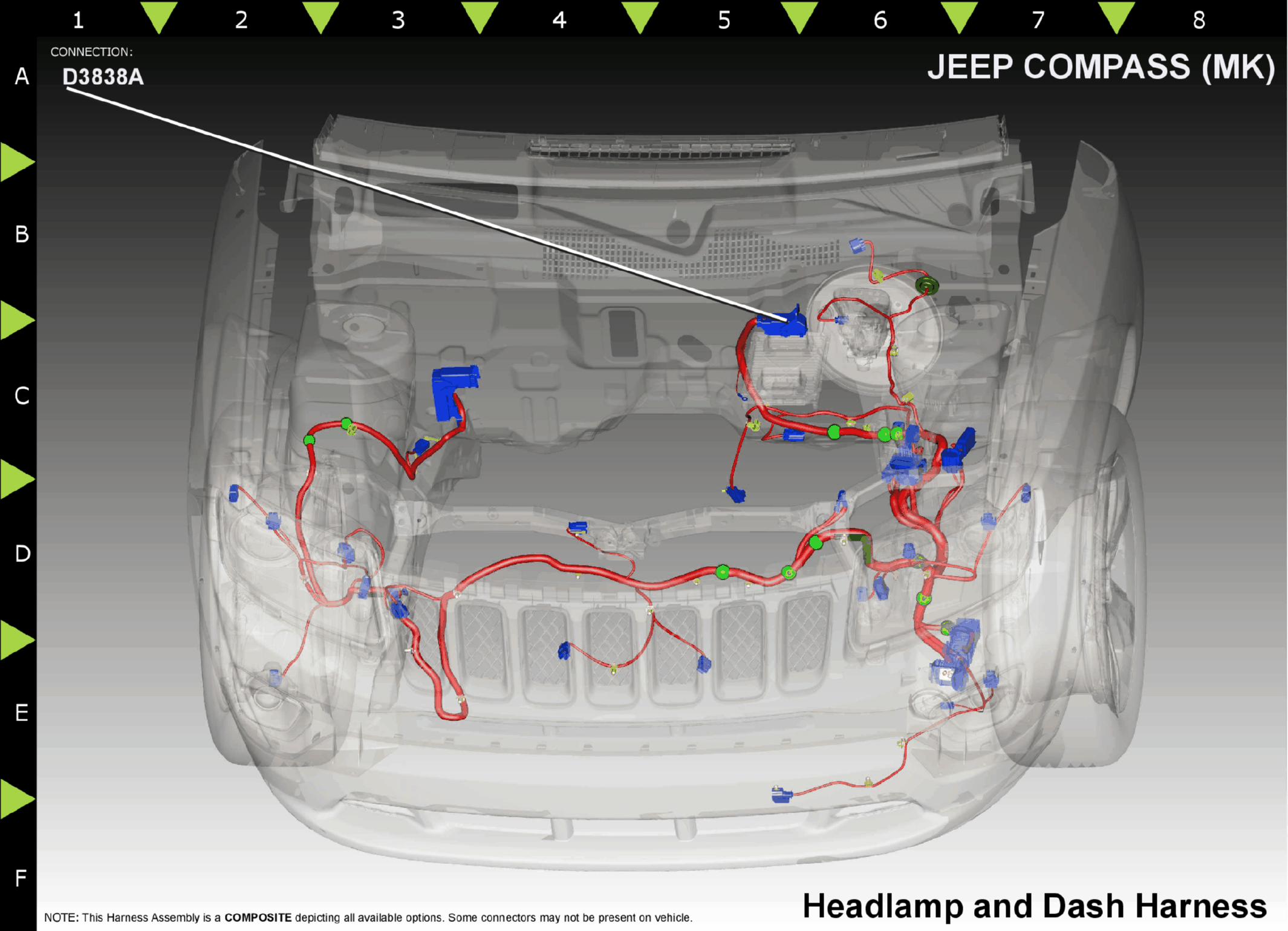

Fig 2: Module-Powertrain Control C1 Component Location (Gas)
GCWD1198505Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A17 B16 LB/DG 20 BRAKE SIGNAL 2 N/A
A18 V72 OR/VT 20 S/C SIGNAL 2 N/A
A19 V71 VT/OR 20 S/C SIGNAL 1 N/A
A22 K915 BR/WT 20 SENSOR GROUND N/A
A23 F202 PK/GY 18 IGNITION RUN/START CONTROL OUTPUT N/A
A33 D64 WT/LB 20 CAN C (-) N/A
A41 B15 DG/WT 20 BRAKE SIGNAL 1 N/A
A43 V937 VT/LG 20 S/C SWITCH GROUND N/A
A52 Z902 BK/YL 16 GROUND N/A
A53 Z902 BK/YL 16 GROUND N/A
A57 D65 WT/BK 20 CAN C (+) N/A
A65 K70 DB/BR 20 EVAP PURGE SOL SIGNAL N/A
A67 K400 BR/VT 20 APP SENSOR GROUND 2 N/A
A68 K167 BR/YL 20 APP SENSOR GROUND 1 N/A
A69 K854 VT/BR 20 5 VOLT SUPPLY N/A
A70 K107 VT/WT 20 ESM SIGNAL N/A
A72 Z902 BK/YL 16 GROUND N/A
A74 F342 BR/WT 14 ASD CONTROL OUTPUT N/A
A75 F342 BR/WT 14 ASD CONTROL OUTPUT N/A
A76 F342 BR/WT 14 ASD CONTROL OUTPUT N/A
A80 K51 BR/WT 20 ASD RELAY CONTROL N/A
A81 T752 DG/OR 20 STARTER RELAY CONTROL N/A
A84 K31 BR 20 FUEL PUMP CONTROL N/A
A87 T120 YL/OR 20 MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL N/A
A91 K29 WT/BR 20 APP SIGNAL 2 N/A
A92 K23 BR/OR 20 APP SIGNAL 1 N/A
A93 K852 BR/VT 20 5 VOLT SUPPLY N/A
A94 K52 DB/WT 20 EVAP PURGE CONTROL N/A
A96 A931 RD/WT 20 FUSED B(+) N/A
17 B16 LB/DG 20 BRAKE SIGNAL 2 N/A
18 V72 OR/VT 20 S/C SIGNAL 2 N/A
19 V71 VT/OR 20 S/C SIGNAL 1 N/A
22 K915 BR/WT 20 SENSOR GROUND N/A
23 F202 PK/GY 18 IGNITION RUN/START CONTROL OUTPUT N/A
33 D64 WT/LB 20 CAN C (-) N/A
41 B15 DG/WT 20 BRAKE SIGNAL 1 N/A
43 V937 VT/LG 20 S/C SWITCH GROUND N/A
52 Z932 BK/YL 16 GROUND N/A
53 Z932 BK/YL 16 GROUND N/A
57 D65 WT/BK 20 CAN C (+) N/A
65 K70 DB/BR 20 EVAP PURGE SOL SIGNAL N/A
67 K400 BR/VT 20 APP SENSOR GROUND 2 N/A
68 K167 BR/YL 20 APP SENSOR GROUND 1 N/A
69 K854 VT/BR 20 5 VOLT SUPPLY N/A
70 K107 VT/WT 20 ESM SIGNAL N/A
72 Z932 BK/YL 16 GROUND N/A
74 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
75 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
76 F342 BR/WT 16 ASD CONTROL OUTPUT N/A
80 K51 BR/WT 20 ASD RELAY CONTROL N/A
81 T752 DG/OR 20 STARTER RELAY CONTROL N/A
84 K31 BR 20 FUEL PUMP CONTROL N/A
87 T120 YL/OR 20 MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL N/A
91 K29 WT/BR 20 APP SIGNAL 2 N/A
92 K23 BR/OR 20 APP SIGNAL 1 N/A
93 K852 BR/VT 20 5 VOLT SUPPLY N/A
94 K52 DB/WT 20 EVAP PURGE CONTROL N/A
96 A931 RD/WT 20 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
