Module-Powertrain Control C2 (Gas) (D3838B)

Harness-Family: Powertrain

Color: BROWN

Gender: FEMALE

Part Number: 1924944-1

Part Description: Not Available

Connector No: D3838B

Option: GAS

Repair Kit Part Number: Not Available

Cavity Count: 96

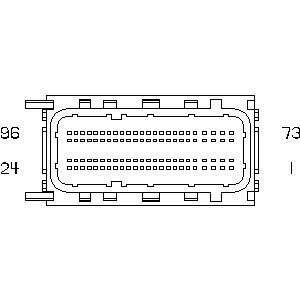

Fig 1: Module-Powertrain Control C2 Connector End View (Gas)

Courtesy of CHRYSLER

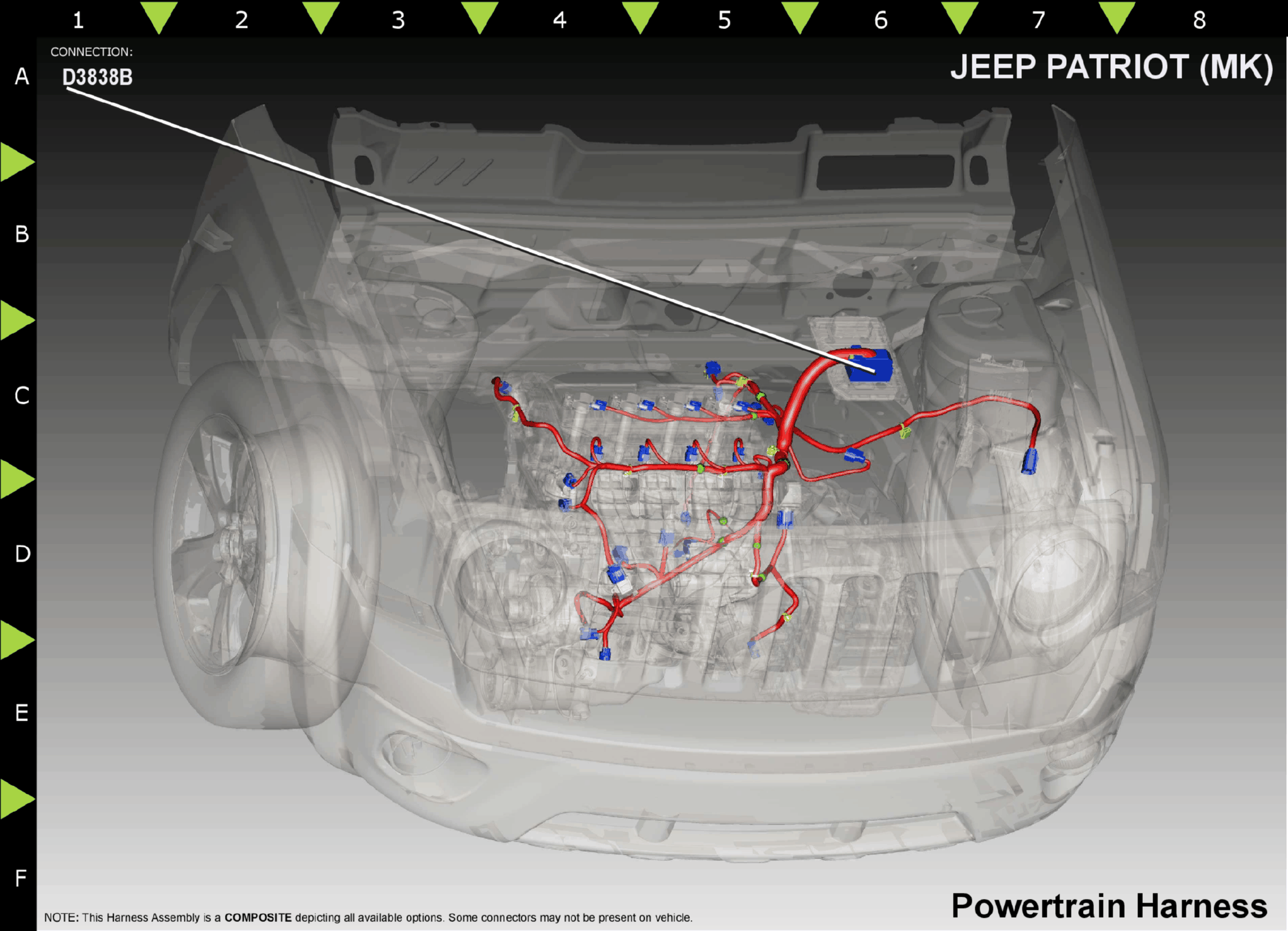

Fig 2: Module-Powertrain Control C2 Component Location (Gas)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K19

DG/LB

COIL CONTROL 1

N/A

B10

K13

BR/LB

INJECTOR CONTROL 3

N/A

B11

K14

BR/TN

INJECTOR CONTROL 4

N/A

B12

VT/OR

ECT SIGNAL

N/A

B14

K42

LG/DB

KS 1 SIGNAL

N/A

B16

G24

VT/BR

EOT SIGNAL

N/A

B17

K21

BK/RD

IAT SIGNAL

N/A

B18

K904

DB/DG

O2 RETURN (DOWNSTREAM)

N/A

B19

K902

BR/DG

O2 RETURN (UPSTREAM)

N/A

K20

BR/GY

GEN FIELD CONTROL

N/A

B22

K276

DB/WT

VVT EXHAUST CONTROL

N/A

B23

K76

BR/WT

VVT INTAKE CONTROL

N/A

B24

K99

BR/OR

O2 1/1 HEATER CONTROL

N/A

B25

K17

DB/TN

COIL CONTROL 2

N/A

B28

K601

BR/VT

EGR AIR FLOW CONTROL

N/A

K124

DB/GY

ETC MOTOR (+)

N/A

B38

K942

WT/BR

KS 1 RETURN

N/A

K126

DB/LG

ETC MOTOR (-)

N/A

B40

A804

RD/GY

GEN SENSE

N/A

B43

K141

DB/YL

O2 1/2 SIGNAL

N/A

B44

K41

BK/DG

O2 1/1 SIGNAL

N/A

B45

VT/LB

MAP SIGNAL

N/A

B46

K602

YL/DB

MFV SIGNAL

N/A

B48

K299

BR/RD

O2 1/2 HEATER CONTROL SUPPLY

N/A

B49

K18

DB/OR

COIL CONTROL 3

N/A

B62

K44

CMP SIGNAL

N/A

B65

K922

TP SENSOR RETURN

N/A

B66

K900

DB/DG

SENSOR GROUND

N/A

B67

F855

PK/YL

5 VOLT SUPPLY

N/A

B73

K15

GY/DB

COIL CONTROL 4

N/A

K11

YL/BR

INJECTOR CONTROL 1

N/A

B84

VT/GY

OIL PRESSURE SIGNAL

N/A

B85

K441

DB/BR

CMP SIGNAL 2

N/A

B86

K24

LB/BR

CKP SIGNAL

N/A

B87

F856

YL/PK

5 VOLT SUPPLY

N/A

B88

K925

DB/GY

CKP GROUND

N/A

B89

K22

OR/BR

TP 1 SIGNAL

N/A

K12

BR/DB

INJECTOR CONTROL 2

N/A

B90

K122

DG/BR

TP 2 SIGNAL

N/A

B92

C27

LB/WT

A/C COMPRESSOR CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
