Module-Wireless Control (D3915A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 638971-2

Part Description: CONNECTOR (PLUG HOUSING SIDE LOCK/CPA)

Connector No: D3915A

Option: Standard

Repair Kit Part Number: 68064994AA

Cavity Count: 8

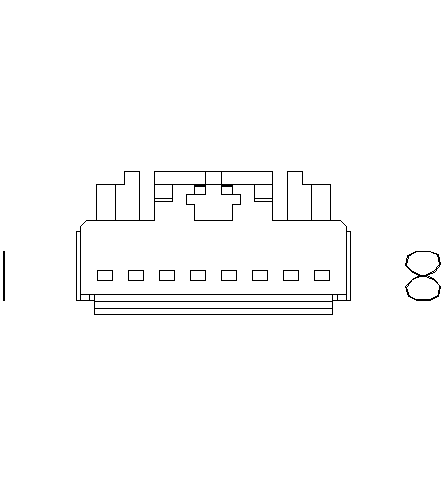

Fig 1: Module-Wireless Control Connector End View

Courtesy of CHRYSLER

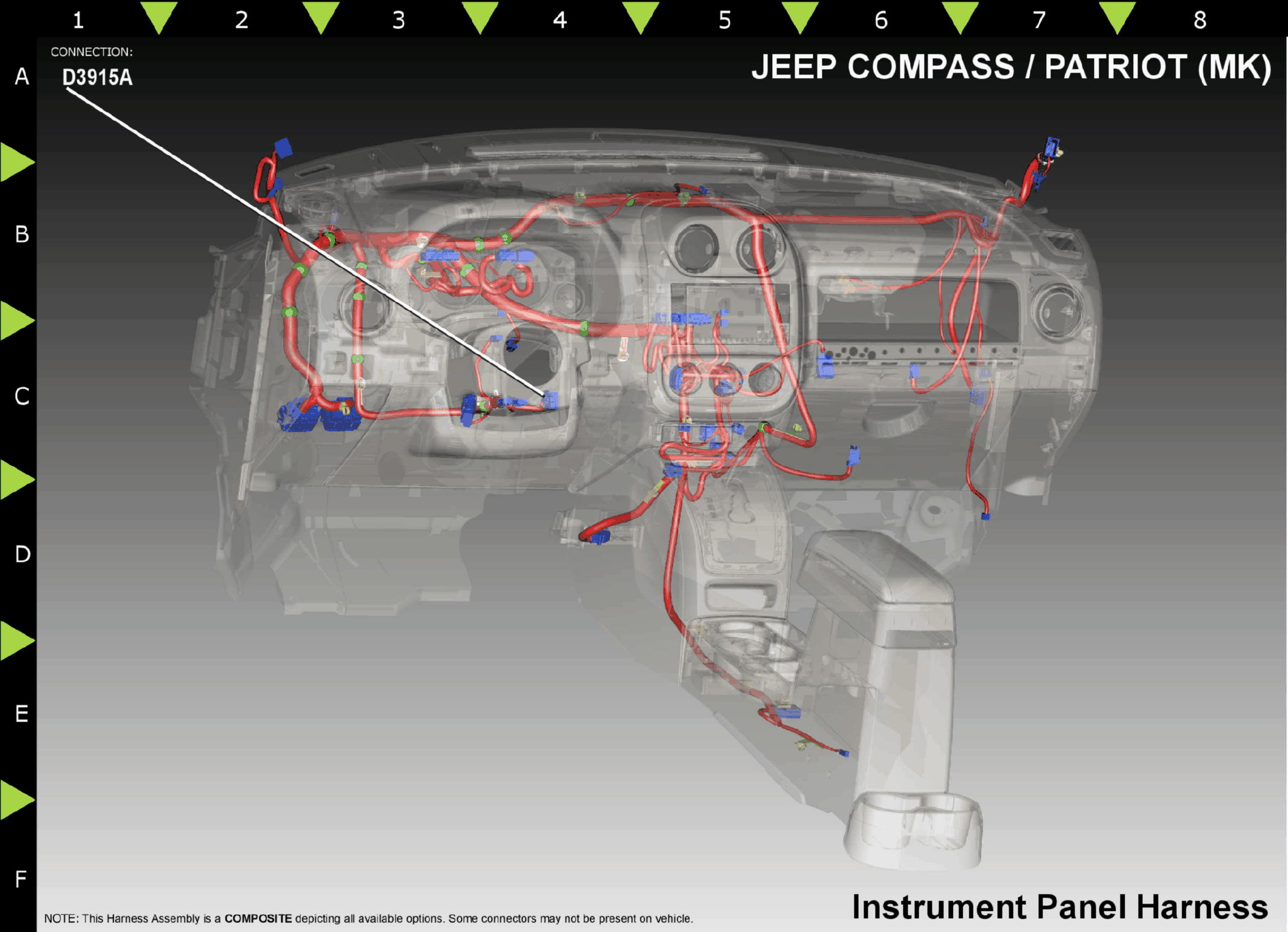

Fig 2: Module-Wireless Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G20

VT/BR

IGNITION SWITCH SENSE

N/A

D508

WT/GY

LIN TIRE PRESSURE MONITOR LAN

N/A

F20

PK/WT

IGNITION RUN/START CONTROL OUTPUT

N/A

Z903

BK/YL

GROUND

N/A

A411

RD/LG

FUSED B(+)

N/A

D55

WT/OR

CAN B (+)

N/A

D54

WT/PK

CAN B (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
