No Response From Pcm (Powertrain Control Module) (GPEC): Notes

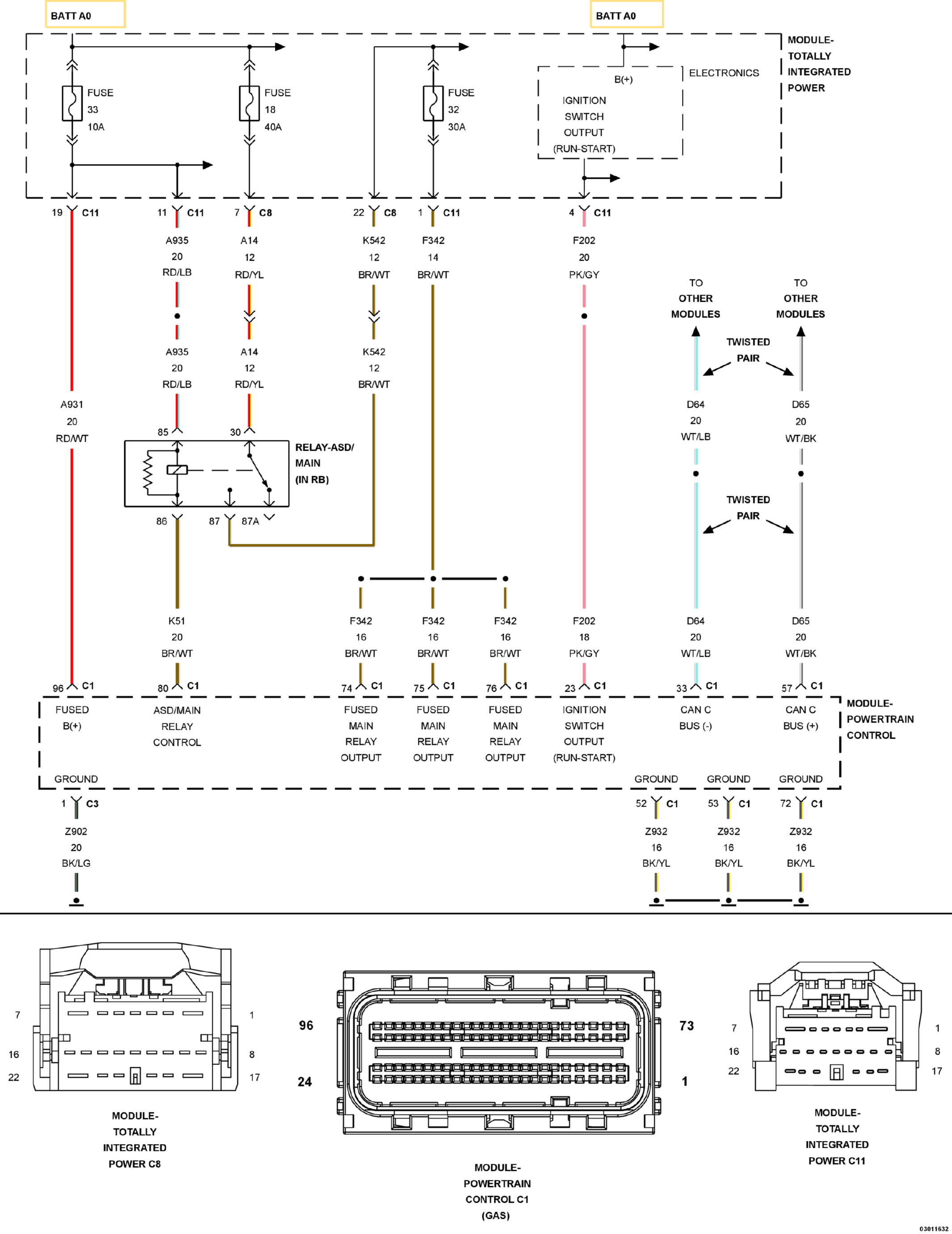

Fig 1: Powertrain Control Module Wiring Diagram (GPEC)

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
