U1416-Implausible Security Siren Signal Received: Notes

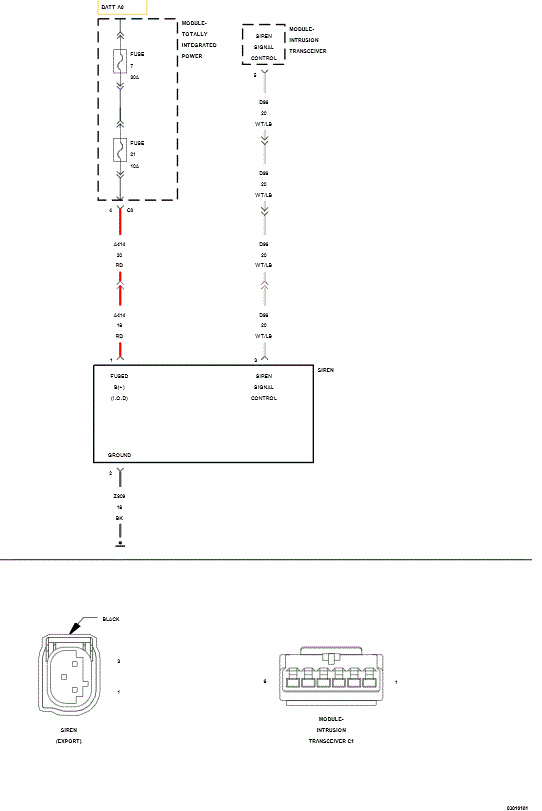

Fig 1: Internal Siren Battery Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
