Relay-Radiator Fan-Series/Parallel (D838A)

Harness-Family: Virtual_Fuse_Block

Color: NA

Gender: MALE

Part Number: G8HE-1C77-R1-DC12

Part Description: Not Available

Connector No: D838A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

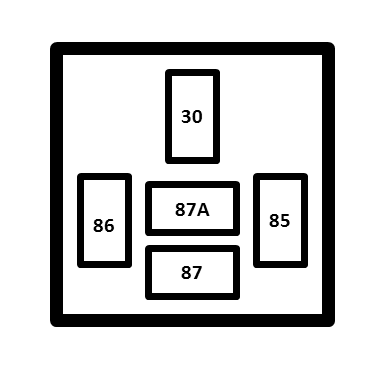

Fig 1: Relay-Radiator Fan-Series/Parallel Connector End View
GCWD1006348Courtesy of CHRYSLER

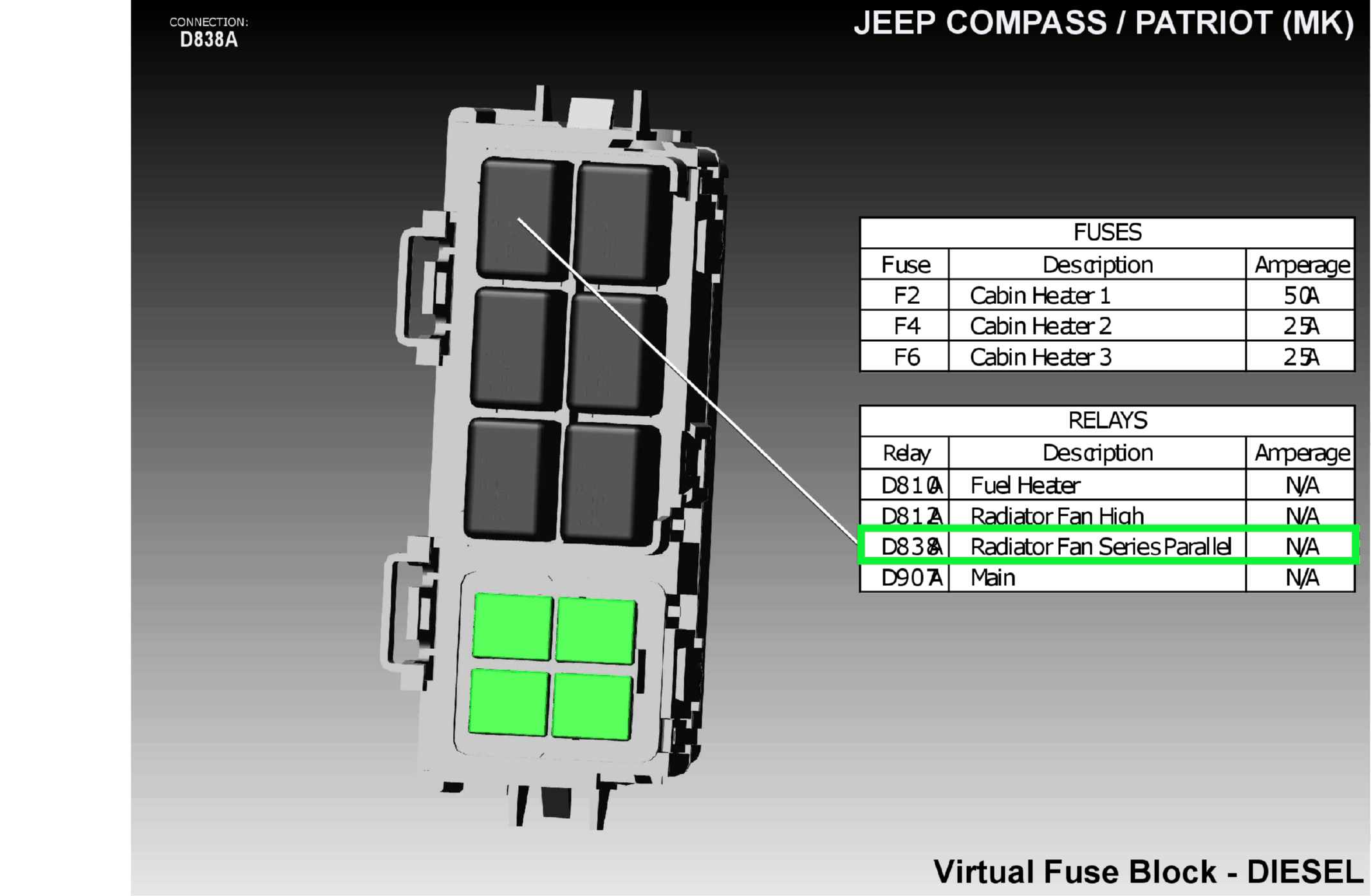

Fig 2: Relay-Radiator Fan-Series/Parallel Component Location
GCWD1198473Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
30 N210 DB/DG 12 RAD FAN HIGH/LOW CONTROL FEED N/A
85 A935 RD 20 FUSED B(+) N/A
86 N112 DB/OR 20 RAD FAN RELAY CONTROL N/A
87 Z901 BK 12 GROUND N/A
87 Z902 BK 12 GROUND N/A
87A N24 DG/DB 12 HIGH SPEED RAD FAN CONTROL N/A
(1) Pins not listed are not used for this connector
