Fan Module-Radiator Cooling C2 (D3022B)

Harness-Family: Engine_Compartment

Color: BLACK

Gender: FEMALE

Part Number: 12033769

Part Description: CONNECTOR ASSEMBLY - M/P P2S

Connector No: D3022B

Option: Standard

Repair Kit Part Number: 68018943AA

Cavity Count: 2

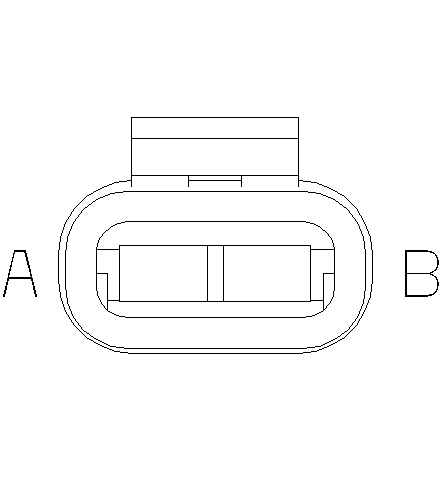

Fig 1: Fan Module-Radiator Cooling C2 Connector End View
GCWD1024728Courtesy of CHRYSLER

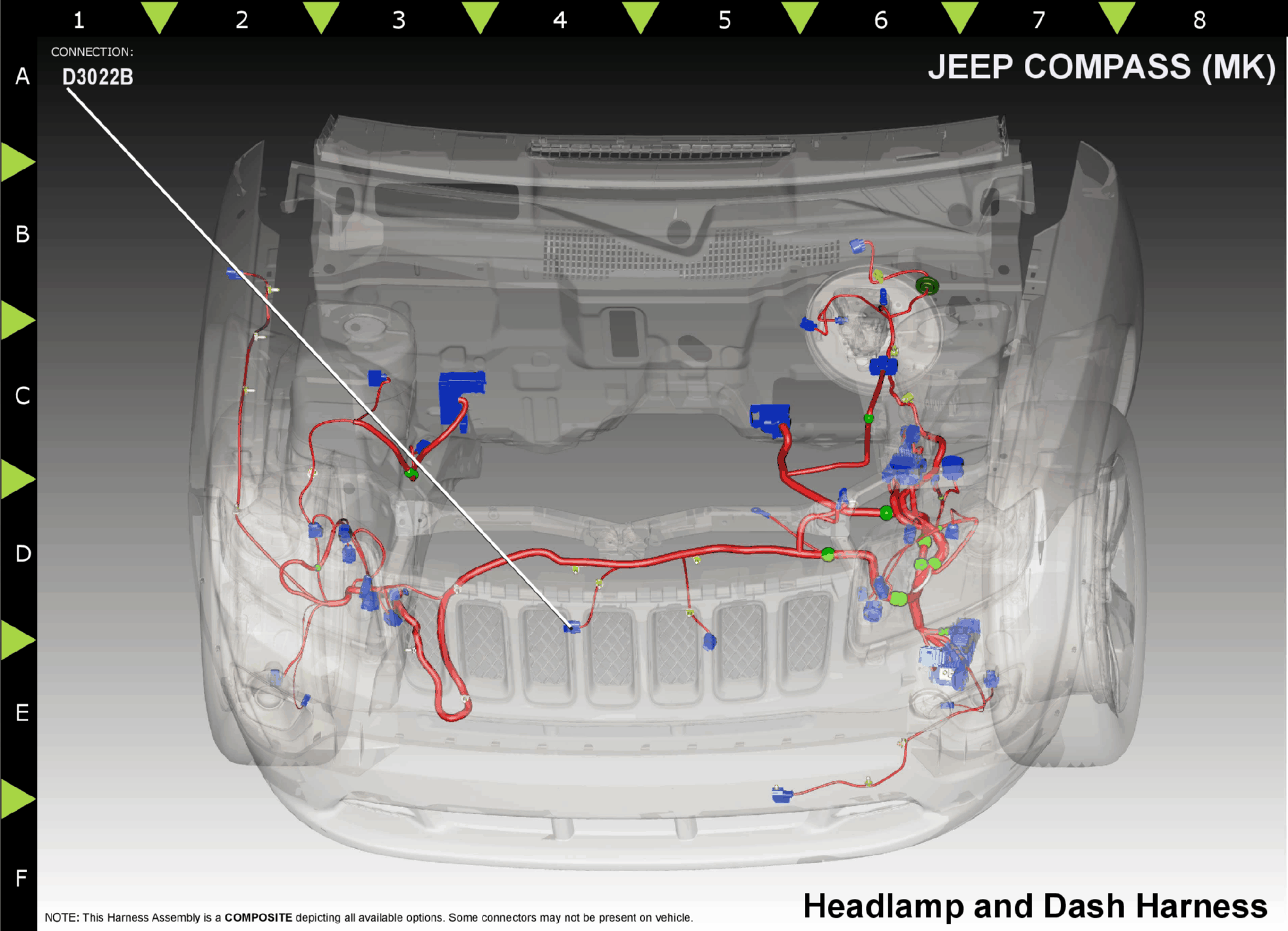

Fig 2: Fan Module-Radiator Cooling C2 Component Location
GCWD1198919Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A Z902 BK/LG 12 GROUND DIESEL
B N24 DG/DB 12 HIGH SPEED RAD FAN CONTROL DIESEL
(1) Pins not listed are not used for this connector
