Module-Inverter (D3920A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 7283-1095

Part Description: 090-2 CONNECTOR HOUSING SUB-ASSEMBLY

Connector No: D3920A

Option: Standard

Repair Kit Part Number: 68080556AA

Cavity Count: 9

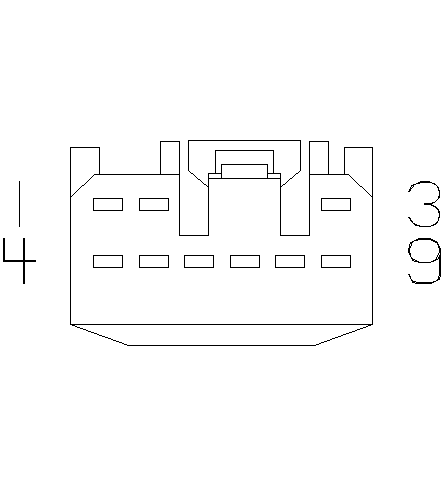

Fig 1: Module-Inverter Connector End View

Courtesy of CHRYSLER

Fig 2: Module-Inverter Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A999

RD/PK

FUSED B(+)

N/A

P801

LG/PK

110 VOLT AC LINE 1

N/A

Z908

BK/LG

GROUND

N/A

P805

LG/DB

110 VOLT AC LINE 3

N/A

P809

LG/LB

110 VOLT AC COMMON

N/A

⁽¹⁾	Pins not listed are not used for this connector
