Module-Steering Control (D2262A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 1438465-1

Part Description: 4 POS PLUG HOUSING, RIGHT KEYED

Connector No: D2262A

Option: Standard

Repair Kit Part Number: 68065026AA

Cavity Count: 4

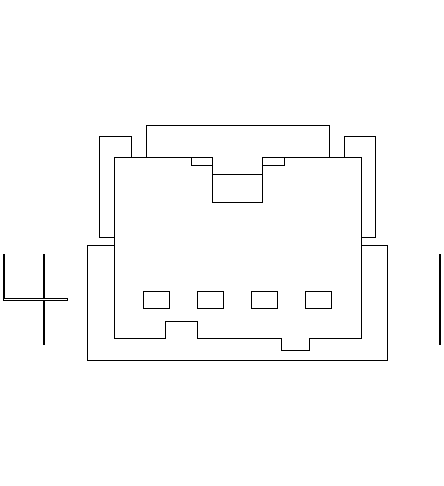

Fig 1: Module-Steering Control Connector End View

GCWD1024547

Courtesy of CHRYSLER

Fig 2: Module-Steering Control Component Location

GCWD1198733

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

A1

Z903

BK/YL

20

GROUND

N/A

A2

A411

RD/LG

22

FUSED B(+)

N/A

A3

D506

WT/DG

22

LIN BUS

N/A

A4

F202

PK/GY

18

IGNITION RUN/START CONTROL OUTPUT

N/A

1

Z903

BK/YL

20

GROUND

N/A

2

A411

RD/LG

22

FUSED B(+)

N/A

3

D506

WT/DG

22

LIN BUS

N/A

4

F202

PK/GY

18

IGNITION RUN/START CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
