Module-Transmission Control C1 (D3855A)

Harness-Family: Body

Color: WHITE

Gender: FEMALE

Part Number: 7283-4781

Part Description: Not Available

Connector No: D3855A

Option: Standard

Repair Kit Part Number: 68020947AA

Cavity Count: 24

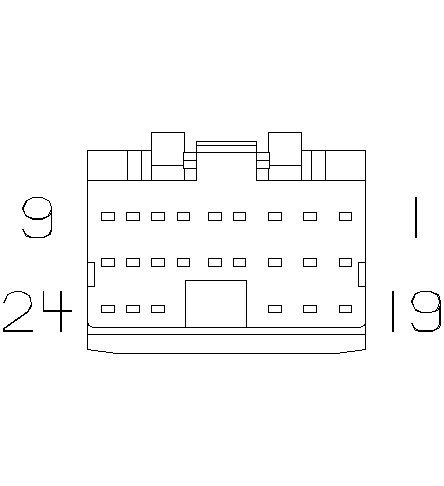

Fig 1: Module-Transmission Control C1 Connector End View

Courtesy of CHRYSLER

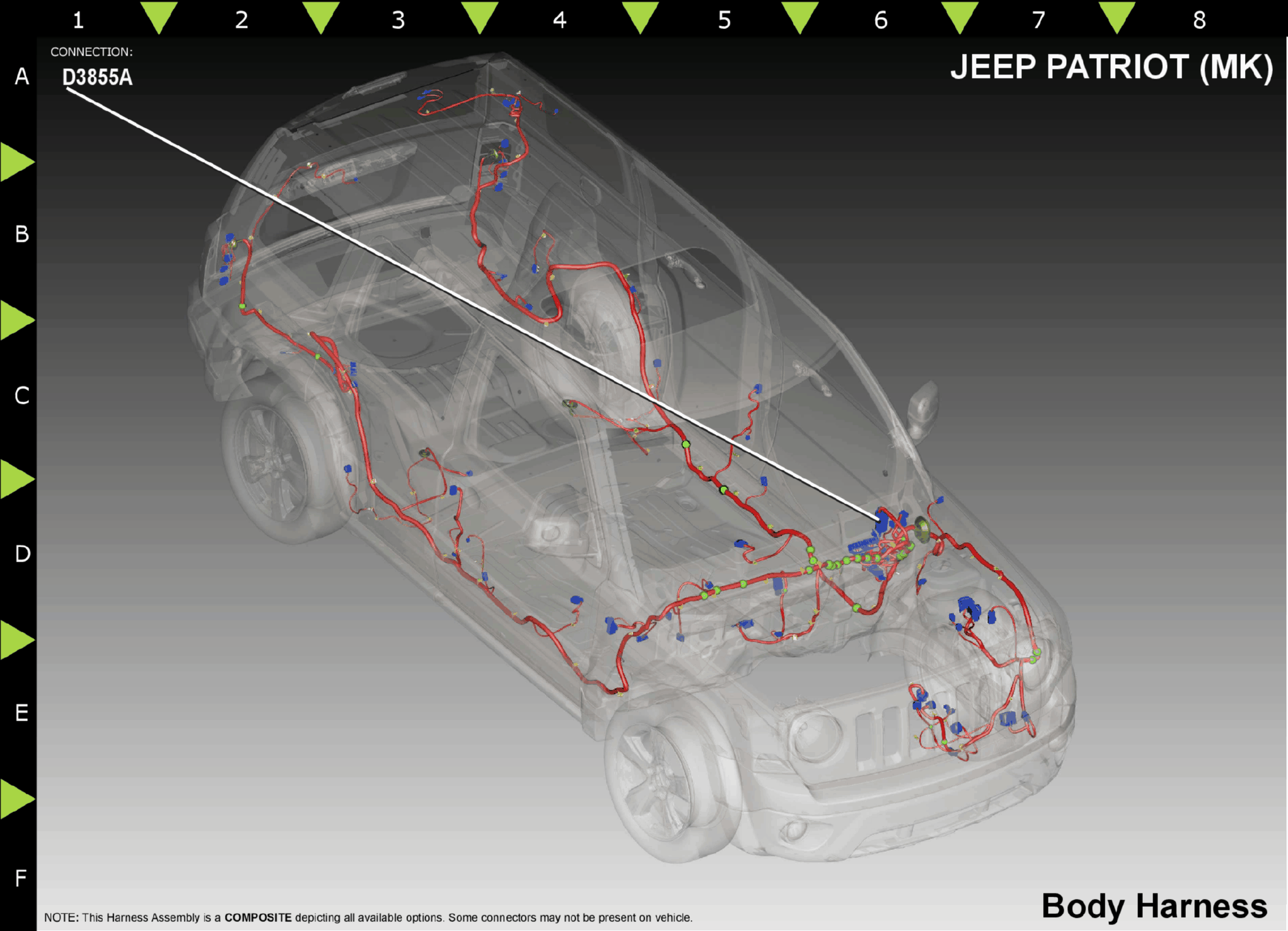

Fig 2: Module-Transmission Control C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T20

DG/LB

LINE PRESSURE SOLENOID

N/A

A10

T16

YL/OR

TRANSMISSION CONTROL OUTPUT

N/A

A11

T314

LB/YL

STEP MOTOR CONTROL A

N/A

A12

T315

YL/OR

STEP MOTOR CONTROL B

N/A

A13

T302

DG/BR

CLOCK SELECT

N/A

A14

T313

YL/LG

CHIP SELECT

N/A

A15

T327

GY/YL

DATA IN/OUT SELECT

N/A

A18

T41

YL/BK

TRS T41 SIGNAL

N/A

A19

T16

YL/OR

TRANSMISSION CONTROL OUTPUT

N/A

T19

YL/DB

SECONDARY PRESSURE SOLENOID

N/A

A20

T316

YL/WT

STEP MOTOR CONTROL C

N/A

A21

T317

TN/YL

STEP MOTOR CONTROL D

N/A

A22

T42

DG/PK

TRS T42 SIGNAL

N/A

T59

YL/LB

TCC SOLENOID CONTROL

N/A

T60

YL/GY

TCC ON/OFF CONTROL

N/A

D65

WT/BK

CAN C (+)

N/A

D64

WT/LB

CAN C (-)

N/A

T20

DG/LB

LINE PRESSURE SOLENOID

N/A

T19

YL/DB

SECONDARY PRESSURE SOLENOID

N/A

T59

YL/LB

TCC SOLENOID CONTROL

N/A

T60

YL/GY

TCC ON/OFF CONTROL

N/A

D65

WT/BK

CAN C (+)

N/A

D64

WT/LB

CAN C (-)

N/A

T16

YL/OR

TRANSMISSION CONTROL OUTPUT

N/A

T314

LB/YL

STEP MOTOR CONTROL A

N/A

T315

YL/OR

STEP MOTOR CONTROL B

N/A

T302

DG/BR

CLOCK SELECT

N/A

T313

YL/LG

CHIP SELECT

N/A

T327

GY/YL

DATA IN/OUT SELECT

N/A

T41

YL/BK

TRS T41 SIGNAL

N/A

T16

YL/OR

TRANSMISSION CONTROL OUTPUT

N/A

T316

YL/WT

STEP MOTOR CONTROL C

N/A

T317

TN/YL

STEP MOTOR CONTROL D

N/A

T42

DG/PK

TRS T42 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
