Module-Transmission Control C2 (D3855B)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-4783-40

Part Description: Not Available

Connector No: D3855B

Option: Standard

Repair Kit Part Number: 68020944AA

Cavity Count: 24

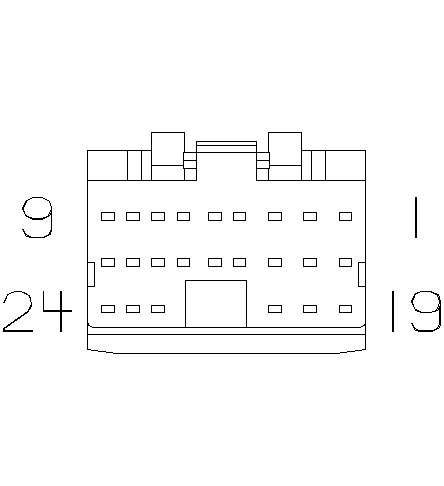

Fig 1: Module-Transmission Control C2 Connector End View

Courtesy of CHRYSLER

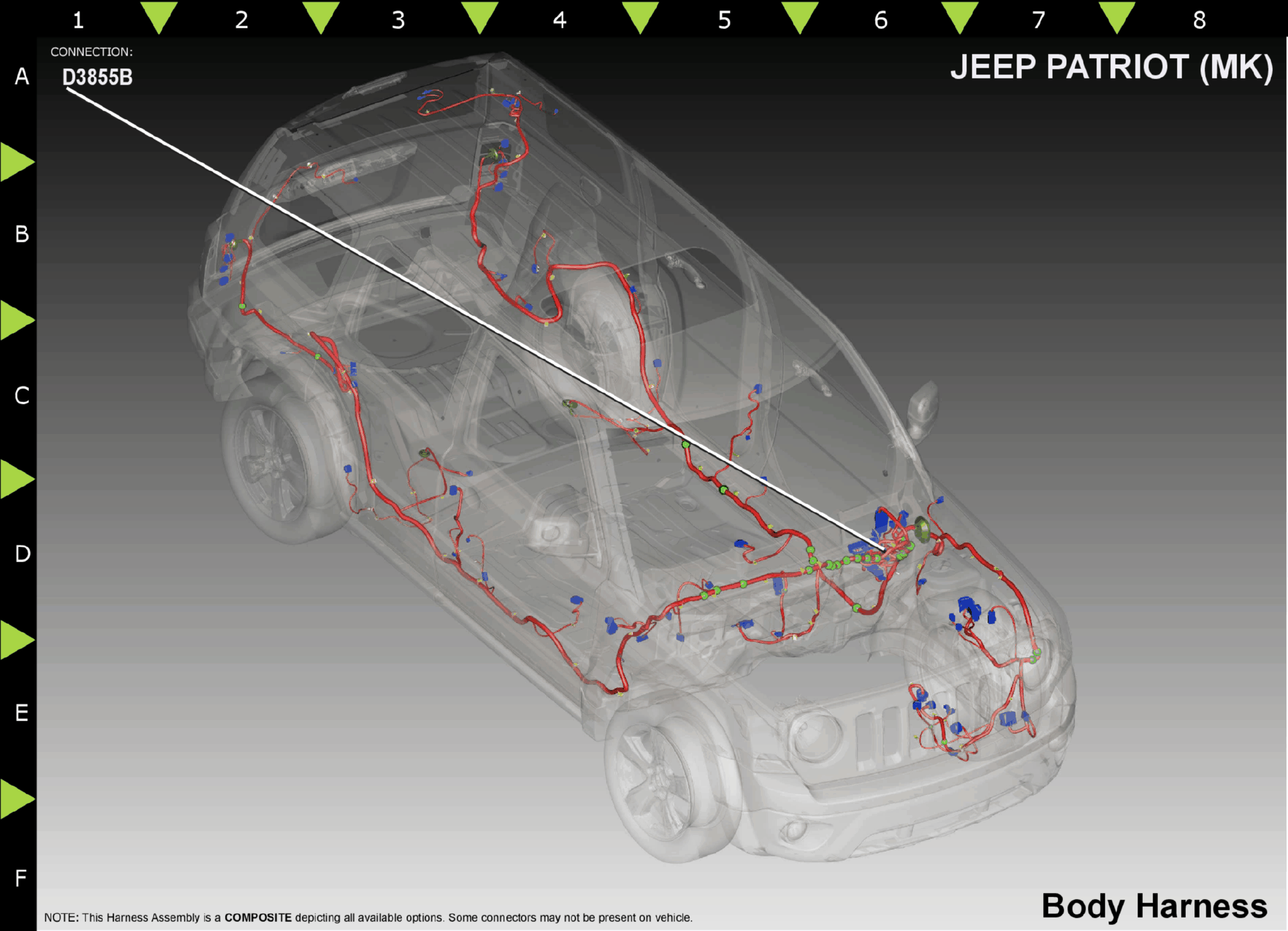

Fig 2: Module-Transmission Control C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

GROUND

N/A

B10

DG/LG

AUTOSTICK UPSHIFT SIGNAL

N/A

B12

T44

YL/DG

AUTOSTICK DOWNSHIFT SIGNAL

N/A

B13

T50

PK/LB

L/R PRESSURE SIGNAL

N/A

B14

T14

DG/BK

INPUT SPEED SIGNAL

N/A

B17

T21

DG/YL

PRIMARY PRESSURE SIGNAL

N/A

B18

T13

DG/TN

SPEED SENSOR GROUND

N/A

B19

DG/DB

TRS T3 SIGNAL

N/A

DG/OR

TRS T4 SIGNAL

N/A

B20

DG/GY

TRS T1 SIGNAL

N/A

B21

T130

TN/DG

OUTPUT SPEED SENSOR GROUND

N/A

B22

T72

SENSOR SUPPLY

N/A

B23

T54

RD/WT

TRANSMISSION TEMPERATURE SIGNAL

N/A

B24

Z906

GROUND

N/A

A952

RD/OR

FUSED B(+)

N/A

T52

DG/WT

OUTPUT SPEED SIGNAL

N/A

Z906

GROUND

N/A

DG/OR

TRS T4 SIGNAL

N/A

A952

RD/OR

FUSED B(+)

N/A

T52

DG/WT

OUTPUT SPEED SIGNAL

N/A

DG/LG

AUTOSTICK UPSHIFT SIGNAL

N/A

T44

YL/DG

AUTOSTICK DOWNSHIFT SIGNAL

N/A

T50

PK/LB

L/R PRESSURE SIGNAL

N/A

T14

DG/BK

INPUT SPEED SIGNAL

N/A

T21

DG/YL

PRIMARY PRESSURE SIGNAL

N/A

T13

DG/TN

SPEED SENSOR GROUND

N/A

DG/DB

TRS T3 SIGNAL

N/A

DG/GY

TRS T1 SIGNAL

N/A

T130

TN/DG

OUTPUT SPEED SENSOR GROUND

N/A

T72

SENSOR SUPPLY

N/A

T54

RD/WT

TRANSMISSION TEMPERATURE SIGNAL

N/A

Z906

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
