Sensor-Occupant Detection (D2457A)

Harness-Family: Seat_Right

Color: BLACK

Gender: MALE

Part Number: 7122-8326-30

Part Description: SDL CONNECTOR HOUSING

Connector No: D2457A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Sensor-Occupant Detection Connector End View
GCWD1006284Courtesy of CHRYSLER

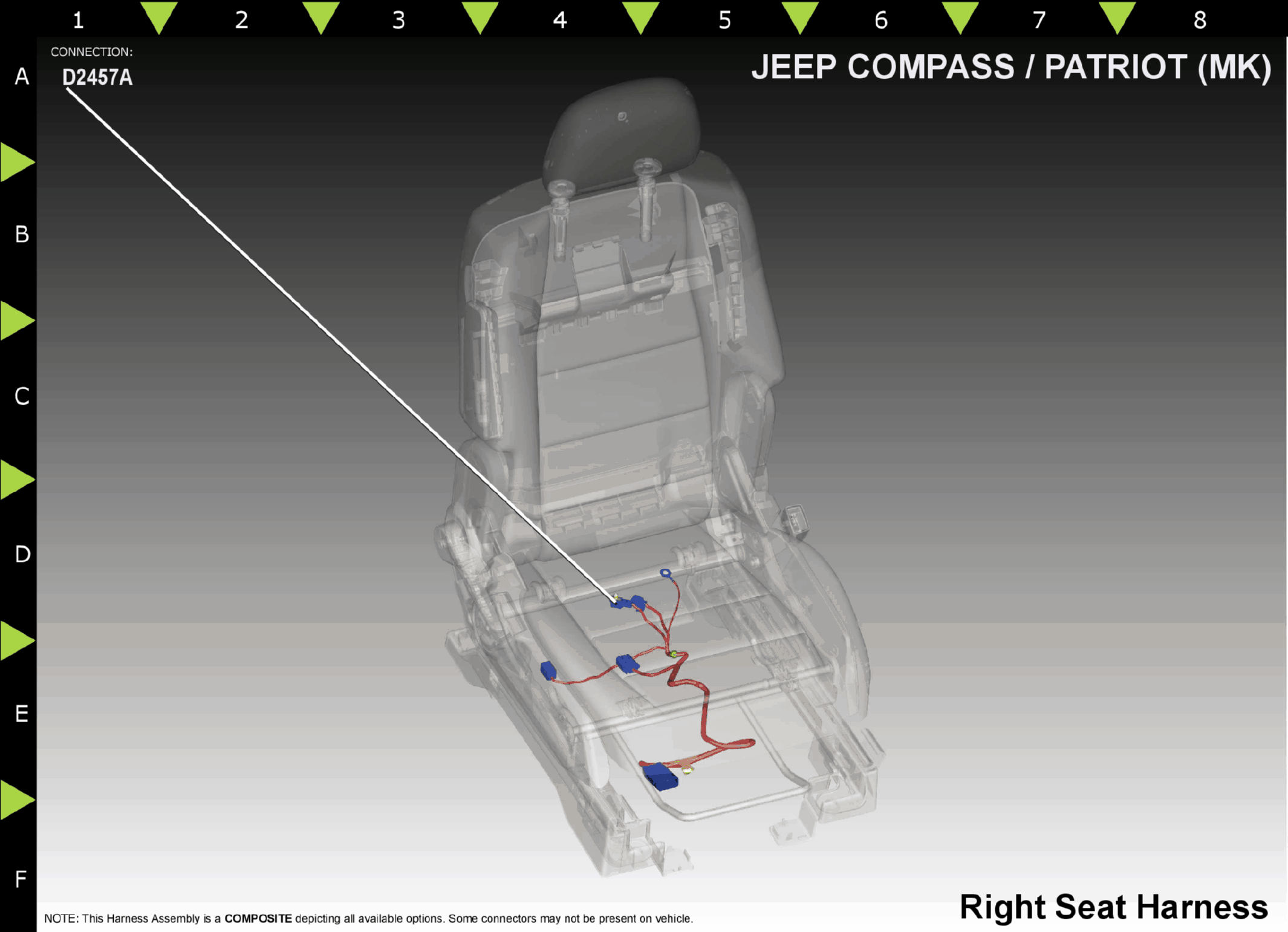

Fig 2: Sensor-Occupant Detection Component Location
GCWD1198824Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R283 LB/DG 20 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
2 R284 LB/LG 20 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
(1) Pins not listed are not used for this connector
