T355 Manual Transmission (Service Information): Assembly: Assembly: Notes

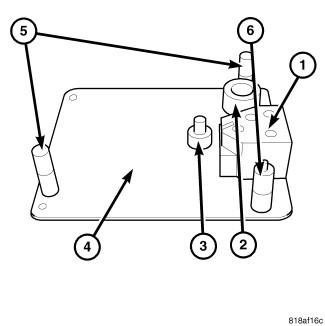

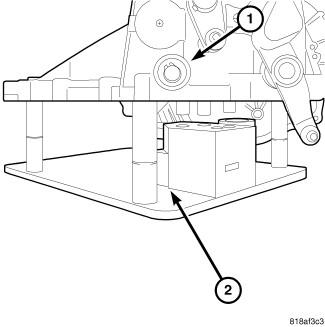

Fig 1: Bench Fixture T355

Courtesy of CHRYSLER LLC

The T355 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.

The sealant used to seal the transaxle case halves is MOPAR® Gasket Maker, Loctite® 518, or equivalent. The sealant used for the bearing end plate cover is MOPAR® RTV.

1. Load Bench Fixture (special tool #6785, Assembly, Pallet) (4) with adaptors (special tool #9761-1, Pad, Shift Rail Support) (1), (special tool #9761-2, Spacer) (3), (special tool #9761-3, Spacer) (2), (special tool #9761-4, Stand Off) (5) and (special tool #9761-5, Stand Off) (6).

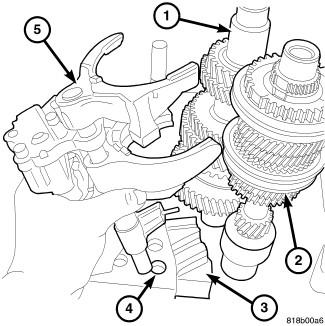

   Fig 2: Shift Rail Assy

   Courtesy of CHRYSLER LLC
2. Install the output (1) and input (2) shafts onto Bench Fixture (special tool #6785, Assembly, Pallet).
3. Install shift blocker assembly and the 1-2 shift fork (5) onto the Bench Fixture (special tool #6785, Assembly, Pallet) (4).
   NOTE:

   Adaptor (special tool #9761-1, Pad, Shift Rail Support) will slide shift blocker assembly and the 1-2 shift fork into the input and output shafts.

4. Align all shift forks and slide into place.

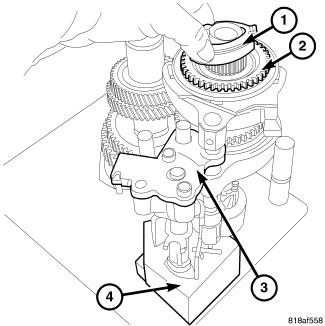

   Fig 3: Shift Shaft Assy

   Courtesy of CHRYSLER LLC
5. Install reverse brake blocking ring (2).
6. Install reverse brake friction cone (1).

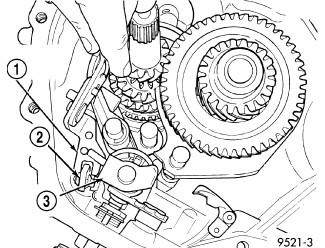

   Fig 4: Trans On Fixture T355

   Courtesy of CHRYSLER LLC
   NOTE:

   One shift fork bolt may need to be installed to align assembly.

7. Install gear-case half (1) over Bench Fixture (special tool #6785, Assembly, Pallet) (2). Line up shift finger over 3-4 lug.
8. Line up reverse brake friction cone lugs to the slots in the gear case. Verify reverse brake shim is in position.

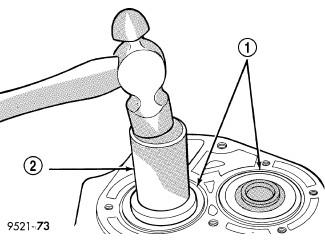

   Fig 5: Installing Input And Output Bearings

   Courtesy of CHRYSLER LLC

   1 - INPUT AND OUTPUT BEARINGS

   2 - SEAL INSTALLER 4992-1

9. Position input and output bearings (1) on the shafts. Refer to Fig 5. Using Seal Installer (special tool #C-4992-1, Installer) (2), install input and output shaft bearings (1) until they bottom into the case and against the shafts.
   Fig 6: Snap Rings Retaining Bearings

   Courtesy of CHRYSLER LLC

   1 - SNAP RING PLIERS

   2 - SNAP RINGS

10. Install new  snap rings (2) at input and output bearings.
    Fig 7: End Cover And Shaft Bolts

    Courtesy of CHRYSLER LLC
11. Apply MOPAR® RTV sealant to end-cover outer edge and around bolt holes. Install end-cover onto gear case. Tighten end cover bolts to 25 N.m (225 in. lbs.).
    NOTE:

    Install new O-rings on shift blocker assembly bolts.

12. Install the three shift blocker assembly bolts (1) and tighten to 25 N.m (225 in. lbs.).

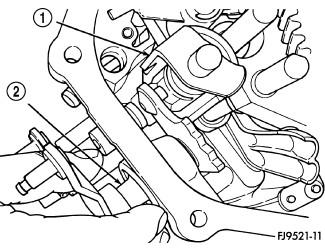

    Fig 8: Selector Shaft

    Courtesy of CHRYSLER LLC

    1 - SHIFT ASSEMBLY

    2 - SELECTOR SHAFT

13. Remove gear case from Bench Fixture (special tool #6785, Assembly, Pallet).
14. Install gear case in a holding fixture with end cover facing down.
15. Turn selector link (2) into slot on blocker assembly. Refer to Fig 8.

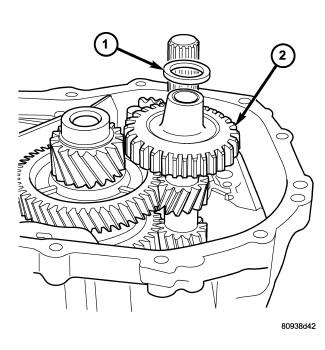

    Fig 9: Reverse Idler Gear & Spacer

    Courtesy of CHRYSLER LLC

    1 - SPACER

    2 - REVERSE IDLER GEAR

16. Push selector link spacer clip onto selector shaft. Install shift levers.
17. Install reverse idler gear (2) and spacer (1). Refer to Fig 9.

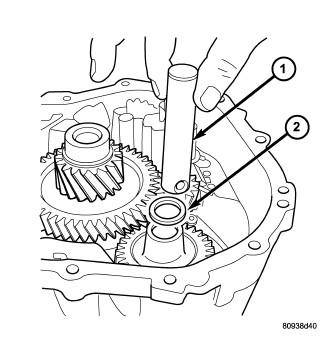

    Fig 10: Removing/Installing Reverse Idler Shaft

    Courtesy of CHRYSLER LLC

    1 - REVERSE IDLER SHAFT

    2 - SPACER

18. Install reverse idler shaft (1). Refer to Fig 10.
    Fig 11: Reverse Idler Shaft

    Courtesy of CHRYSLER LLC

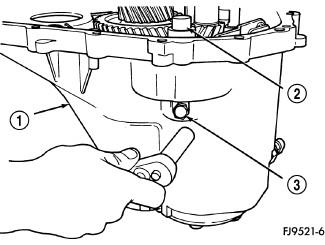

    1 - CASE

    2 - REVERSE IDLER SHAFT

    3 - REVERSE IDLER SHAFT BOLT

    NOTE:

    Install a new O-ring on reverse idler shaft bolt.

19. Install bolt into reverse idler shaft (2) and tighten to 26 N.m (19 ft. Refer to Fig 11. lbs.).

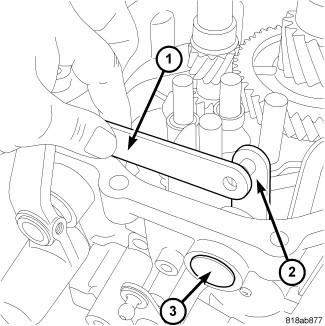

    Fig 12: Remove Reverse Fork Bracket

    Courtesy of CHRYSLER LLC

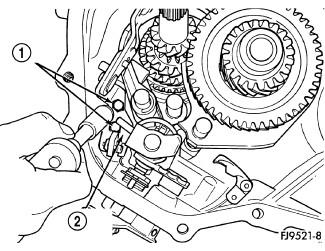

    1 - REVERSE FORK BRACKET

    2 - REVERSE CAM BLOCKOUT

    3 - SHIFT BLOCKER ASSEMBLY

20. Install reverse fork bracket (1). Refer to Fig 12.

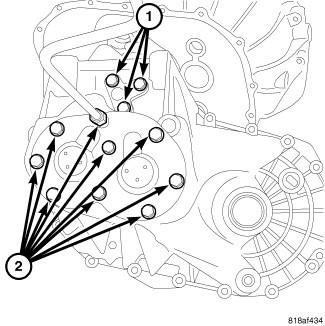

    Fig 13: Screws Retaining Reverse Fork Bracket

    Courtesy of CHRYSLER LLC

    1 - SCREWS (2)

    2 - REVERSE FORK BRACKET

21. Tighten reverse fork bracket (1) bolts to 11 N.m (96 in. Refer to Fig 13. lbs.).

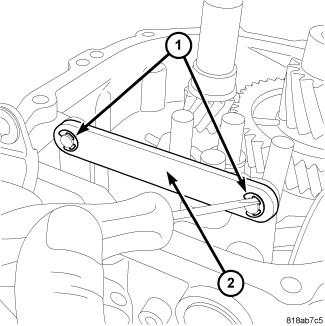

    Fig 14: Linkage Tie Bar

    Courtesy of CHRYSLER LLC
22. Install the linkage tie bar (1).
    Fig 15: Linkage Tie Bar Clips

    Courtesy of CHRYSLER LLC
23. Install the linkage tie bar clips (1).

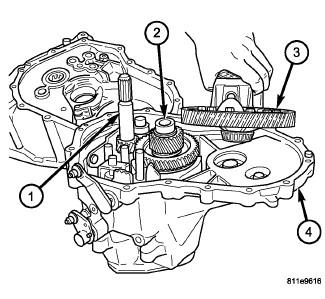

    Fig 16: Removing/Installing Differential

    Courtesy of CHRYSLER LLC

    1 - INPUT SHAFT

    2 - OUTPUT SHAFT

    3 - DIFFERENTIAL ASSEMBLY

    4 - GEARTRAIN HOUSING

24. Install differential (3) into gear case (4). Refer to Fig 16.
