DIFFERENTIAL, Transaxle: Assembly: Assembly: Notes

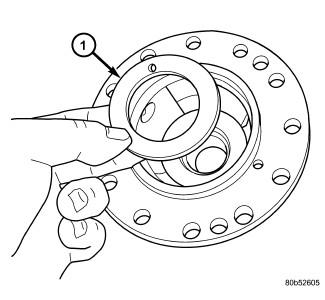

Fig 1: Side Gear Thrust Washer

Courtesy of CHRYSLER LLC

1 - SIDE GEAR THRUST WASHER

Install side gear thrust washer (1) into case.

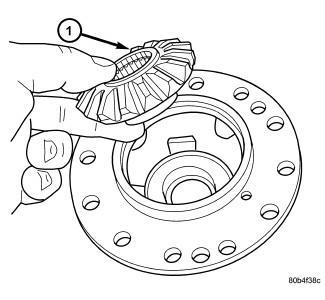

Fig 2: Differential Side Gear
Courtesy of CHRYSLER LLC

1 - DIFFERENTIAL SIDE GEAR
Install side gear (1).

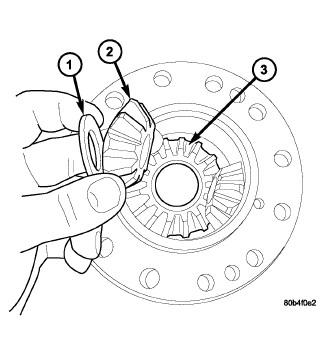

Fig 3: Pinion Gear And Thrust Washer
Courtesy of CHRYSLER LLC

1 - THRUST WASHER (4)

2 - PINION GEAR (4)
Install pinion gear (2) and thrust washer (1) into case.

Fig 4: Long Pinion Shaft
Courtesy of CHRYSLER LLC

1 - PINION SHAFT (LONG)
Install pinion shaft (1) .

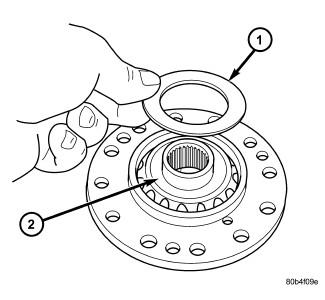

Fig 5: Side Gear Thrust Washer
Courtesy of CHRYSLER LLC

1 - SIDE GEAR THRUST WASHER

2 - DIFFERENTIAL SIDE GEAR
Install the side gear (2) and the thrust washer (1).

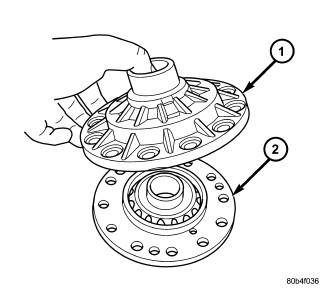

Fig 6: Differential Support Plate
Courtesy of CHRYSLER LLC

1 - DIFFERENTIAL SUPPORT PLATE

2 - DIFFERENTIAL CASE

Install differential support (1) onto case (2).

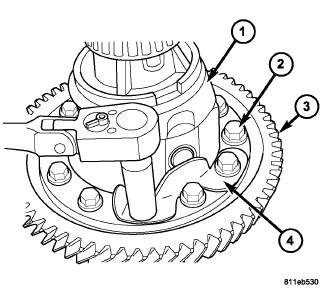

Fig 7: Differential Ring Gear-to-case Bolts

Courtesy of CHRYSLER LLC

1 - DIFFERENTIAL CASE

2 - BOLT (12)

3 - RING GEAR

4 - PINION SHAFT RETAINER (2)

Install pinion shaft retainer along with NEW ring gear-to-case bolts (2) tighten bolts to 95 N.m (70 ft. lbs.).

Fig 8: Install Differential Bearing Cone To Ring Gear Side

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM

2 - BEARING CONE

3 - HANDLE C-4171

4 - INSTALLER L-4410

5 - DIFFERENTIAL ASSEMBLY

Using an arbor press (1), Handle (special tool #C-4171, Driver Handle, Universal) (3), and Installer (special tool #L-4410, Installer, Bearing) (4), install differential side bearing to ring gear side. Refer to Fig 8.

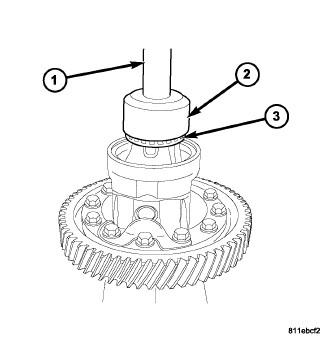

Fig 9: Installing Bearing Cone To Differential Case Side

Courtesy of CHRYSLER LLC

1 - HANDLE C-4171

2 - INSTALLER L-4410

3 - BEARING CONE

Using an arbor press, Handle (special tool #C-4171, Driver Handle, Universal) (1), and Installer (special tool #L-4410, Installer, Bearing) (2), install differential side bearings (3) to case side. Refer to Fig 9. If all wheel drive use Bearing Installer (special tool #6053, Installer, Bearing) to install the large bearing.
