Diagnostic Test

  1. CHECK TO SEE IF THE DTC IS ACTIVE
    1. With the scan tool, read Transmission DTCs.

      Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

      Yes

      • Go To  2.

      No

      • Go To  4.
  2. CHECK THE (T13) SENSOR GROUND CIRCUIT FOR AN OPEN

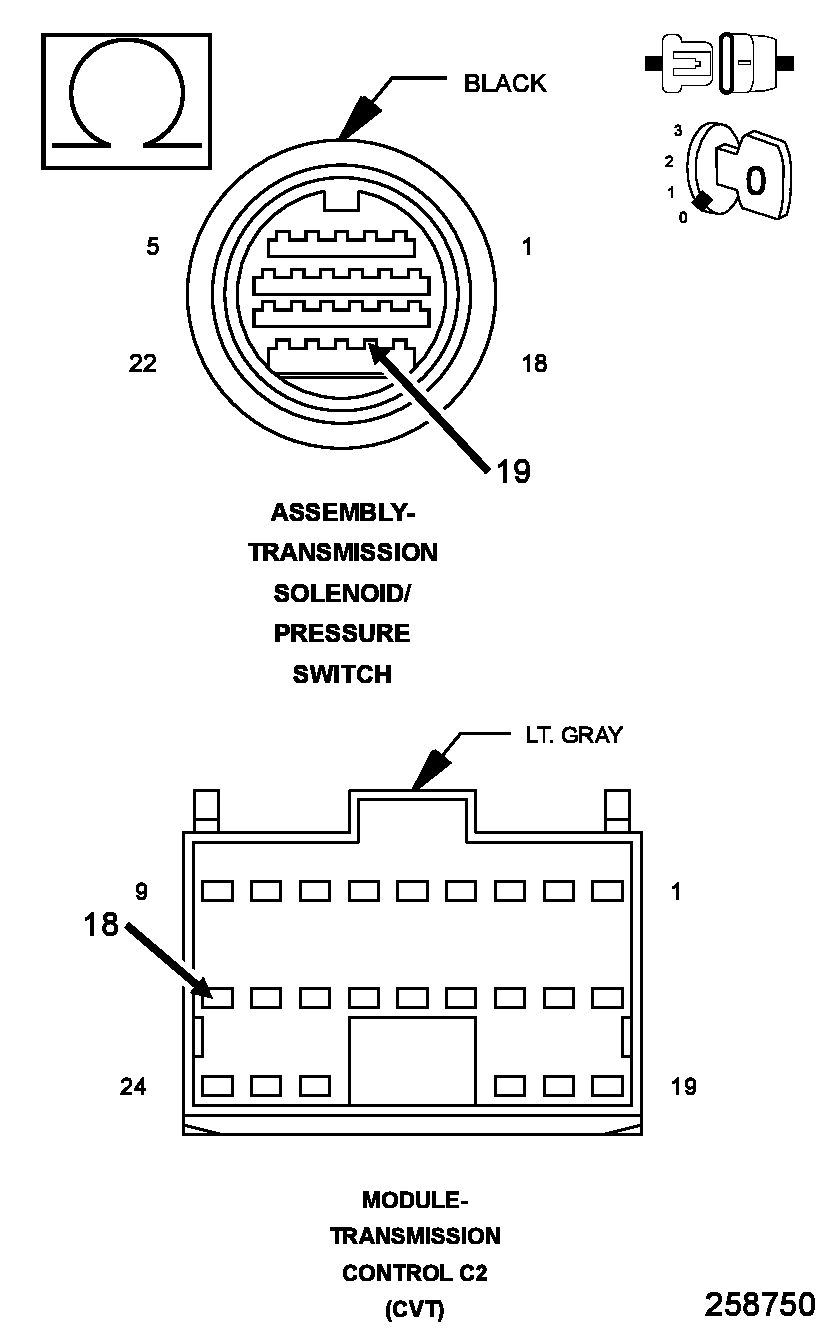

    Fig 1: Measuring Resistance Of Sensor Ground Circuit
    GC0100361Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position.
    2. Disconnect the TCM C2 harness connector.
    3. Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
    4. Measure the resistance of the (T13) Sensor Ground circuit between the TCM C2 harness connector and the Transmission Solenoid/Pressure Switch Assembly harness connector.

      Is the resistance above 5.0 ohms?

      Yes

      • Repair the (T13) Sensor Ground circuit for an open.
      • Perform CVT VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  3.
  3. CHECK THE (T13) SENSOR GROUND CIRCUIT FOR AN OPEN INTERNALLY
    1. Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for any Service Bulletins for possible causes that may apply. If no problems are found, replace and program the TCM in accordance with the Service Information.
    2. Perform CVT VERIFICATION TEST. Refer to Standard Procedure .

      Does the DTC reset during the Verification procedure?

      Yes

      • Replace the CV Transmission or repair the valve body (internal wiring) in accordance with the Service Information.
      • Perform CVT VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Test Complete.
  4. CHECK THE WIRING AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
    3. Wiggle the wires while checking for shorted and open circuits.

      Were there any problems found?

      Yes

      No

      • Test Complete.
