Differential Assembly

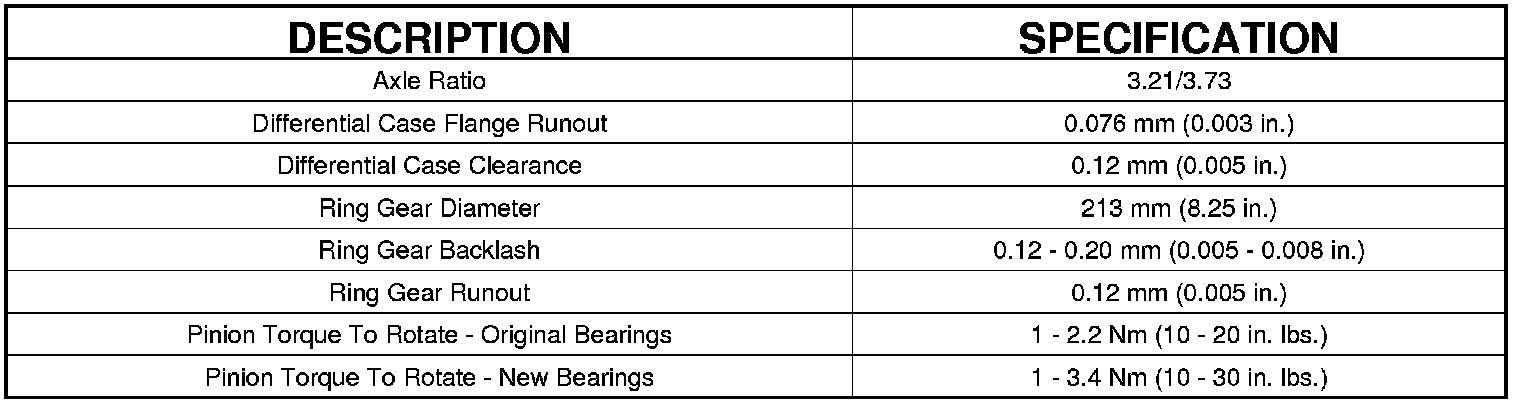

SPECIFICATIONS

AXLE

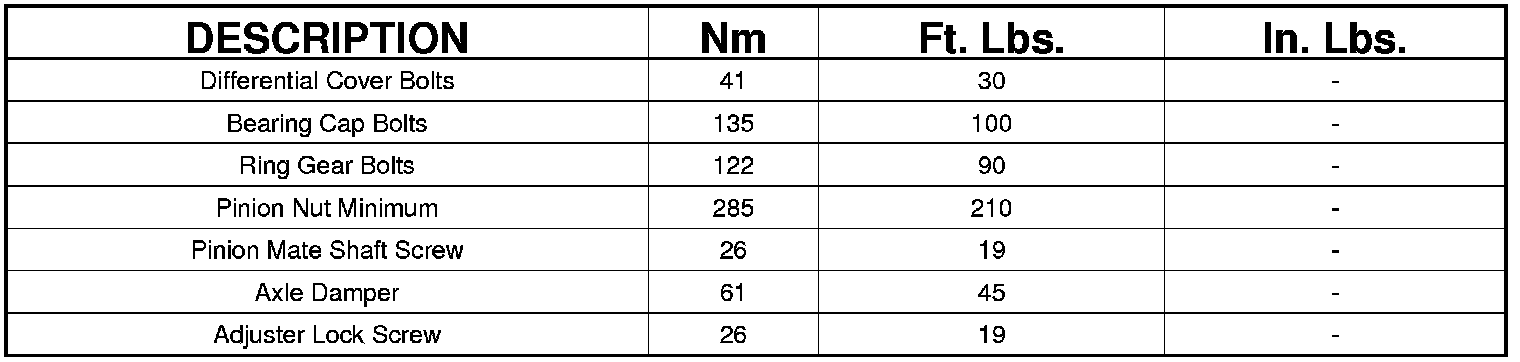

TORQUE






Ring Gear Bolts - Diesel Engines: Follow service procedure to tighten ring gear bolts on vehicles equipped with diesel engine and 3.21 gear ratio.
