Alignment

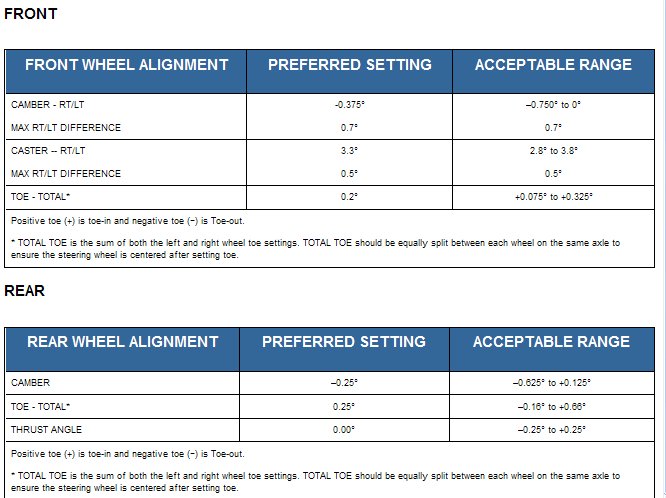

WHEEL ALIGNMENT
All specifications are given in degrees.
All wheel alignments are to be set with the vehicle at curb height.

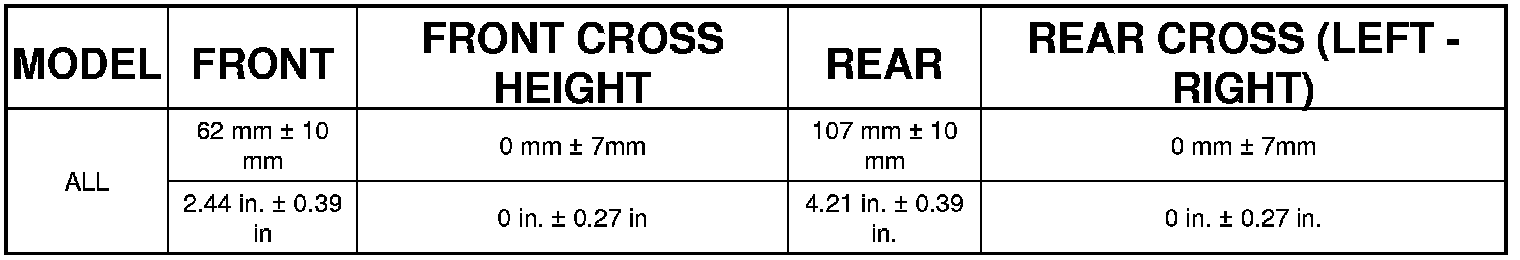

CURB HEIGHT SPECIFICATIONS
