Diagnostic Test

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU View.
  NOTE:
  A red "X" will be next to the module that is not communicating, indicating that the module is not active on the BUS network. A green check indicates that the module is active on the BUS network.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go To 2.
  No
  - The no response condition is not present at this time. Using the wiring diagram as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(Z913) GROUND CIRCUIT OPEN

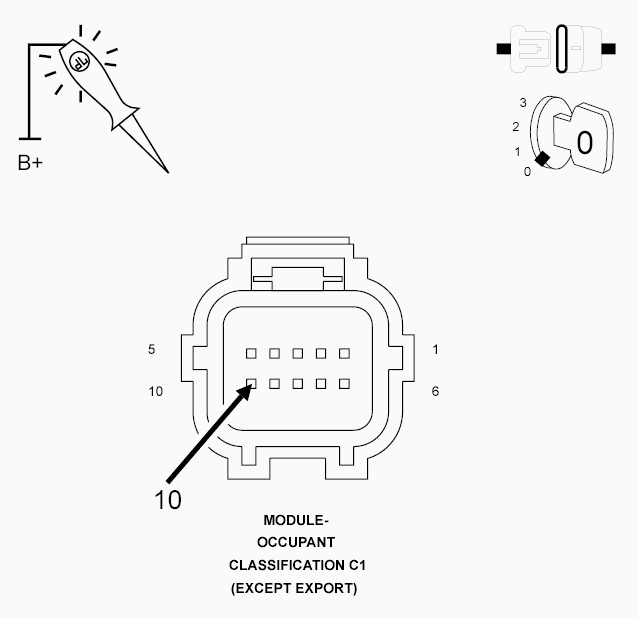

Fig 1: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the Occupant Classification Module harness connectors.
2. Using a 12-volt test light connected to 12-volts, check the (Z913) ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 3.
  No
  - Repair the (Z913) ground circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
(A27) FUSED B+ CIRCUIT OPEN OR SHORTED

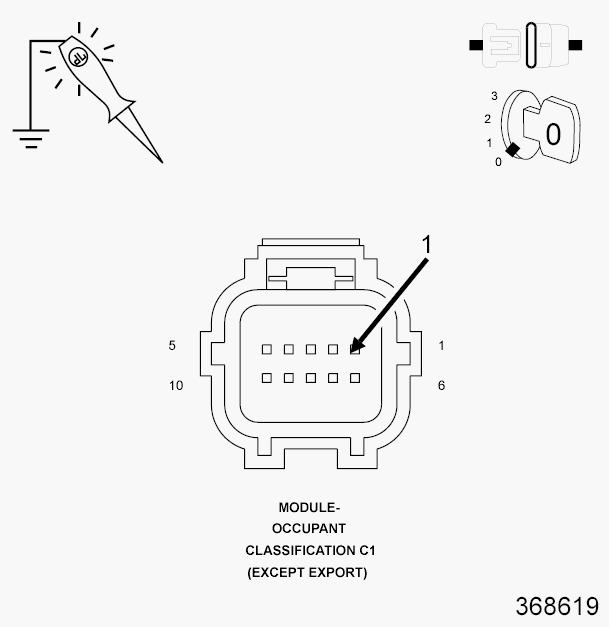

Fig 2: Checking Fused B+ Circuit For Open Or Short
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to ground, check the (A27) Fused B+ circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 4.
  No
  - Repair the (A27) Fused B+ circuit for an open or short.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
(D65) CAN C BUS (+) CIRCUIT OPEN

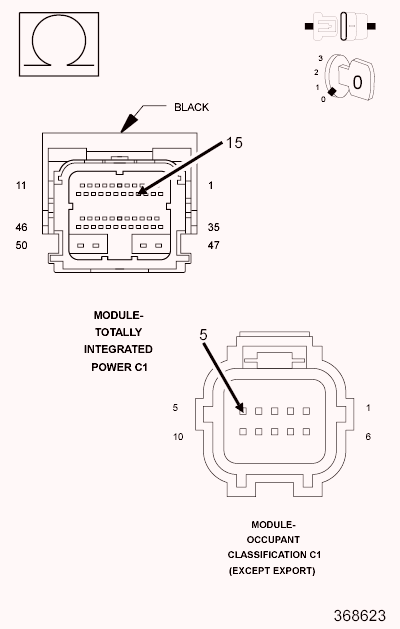

Fig 3: Checking CAN C BUS (+) Circuit For Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (D65) CAN C BUS (+) circuit between the TIPM C1 harness connector and the Occupant Classification Module connector.
  Is resistance below 5.0 ohms?

  Yes
  - Go To 5.
  No
  - Repair the (D65) CAN C BUS (+) circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
(D64) CAN C BUS (-) CIRCUIT OPEN

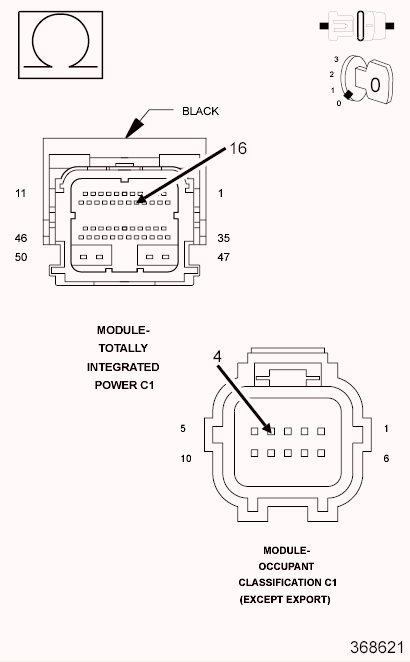

Fig 4: Checking CAN C BUS (-) Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C BUS (-) circuit between the TIPM C1 harness connector and the Occupant Classification Module connector.
  Is resistance below 5.0 ohms?

  Yes
  - Replace the Occupant Classification Module in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Repair the (D64) CAN C BUS (-) circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
