B140F-Rear Right Audio Speaker Output Circuit Open - Base: Notes

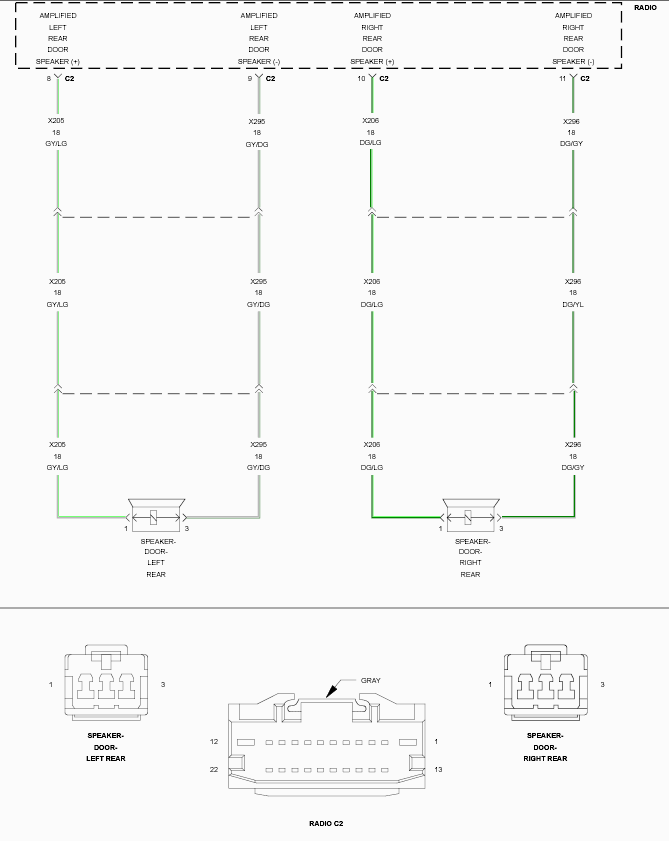

Fig 1: Rear Right Audio Speaker Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

There are two versions of the B140F DTC test. In order to select the proper test you must know if the vehicle is equipped with an Amplifier. If the vehicle is equipped with an Amplifier use the B140F-PREMIUM test. If the vehicle is not equipped with an Amplifier use the B140F-BASE test.
