B2582-Full Open Roof REAWARD Open Switch Circuit Performance: Notes

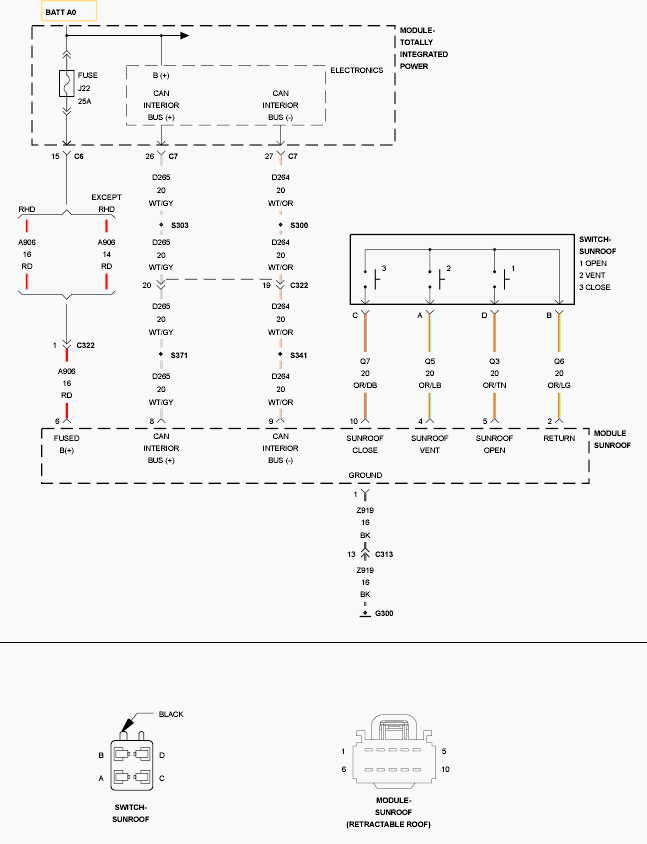

Fig 1: Sunroof Module Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article
