B1D1F-Driver Mirror Vertical Motor Control Circuit Low: Notes

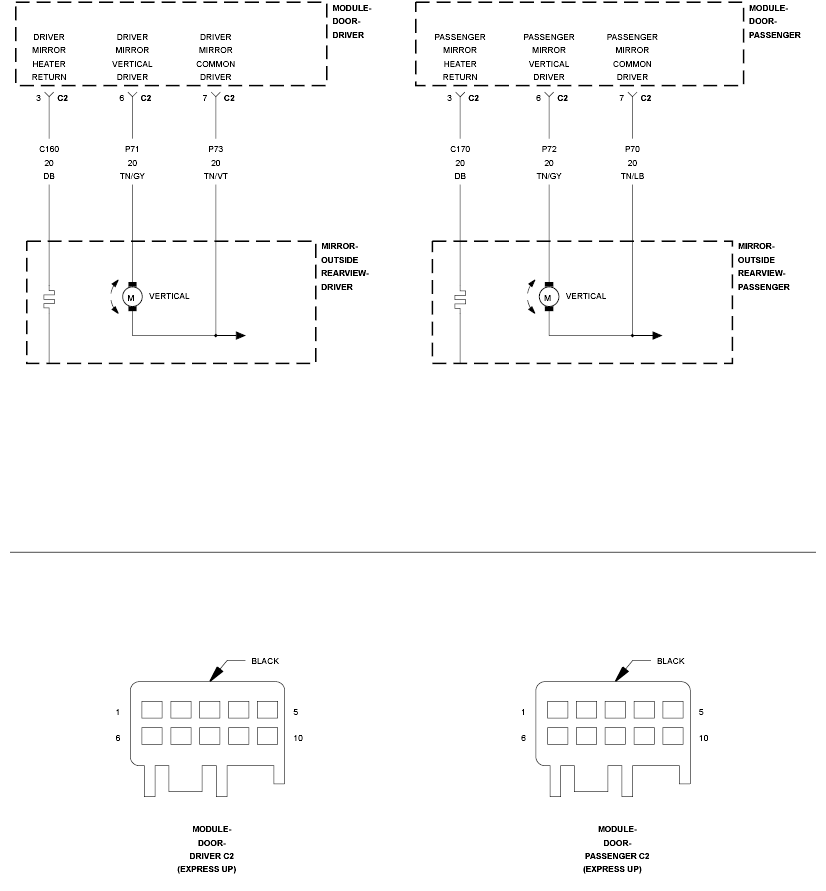

Fig 1: Driver Mirror Vertical Motor Control Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
