B2580-Driver Window Position Sensor(S) No Signal: Notes

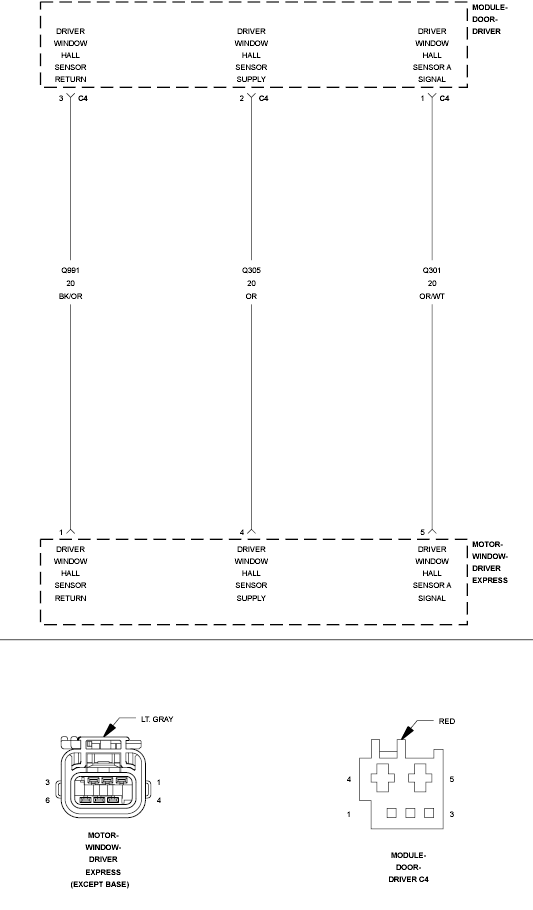

Fig 1: Driver Window Position Sensor Wiring Diagram
GC0101372Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
