Module-Powertrain Control C2 (3.7L) (D3838B)

Harness-Family: Powertrain

Color: ORANGE

Gender: FEMALE

Part Number: 3-1326727-7

Part Description: NGC HEADER CONNECTION - INDEX B

Connector No: D3838B

Option: 3.7L

Repair Kit Part Number: Not Available

Cavity Count: 38

Fig 1: Module-Powertrain Control C2 Connector End View (3.7L)

Courtesy of CHRYSLER

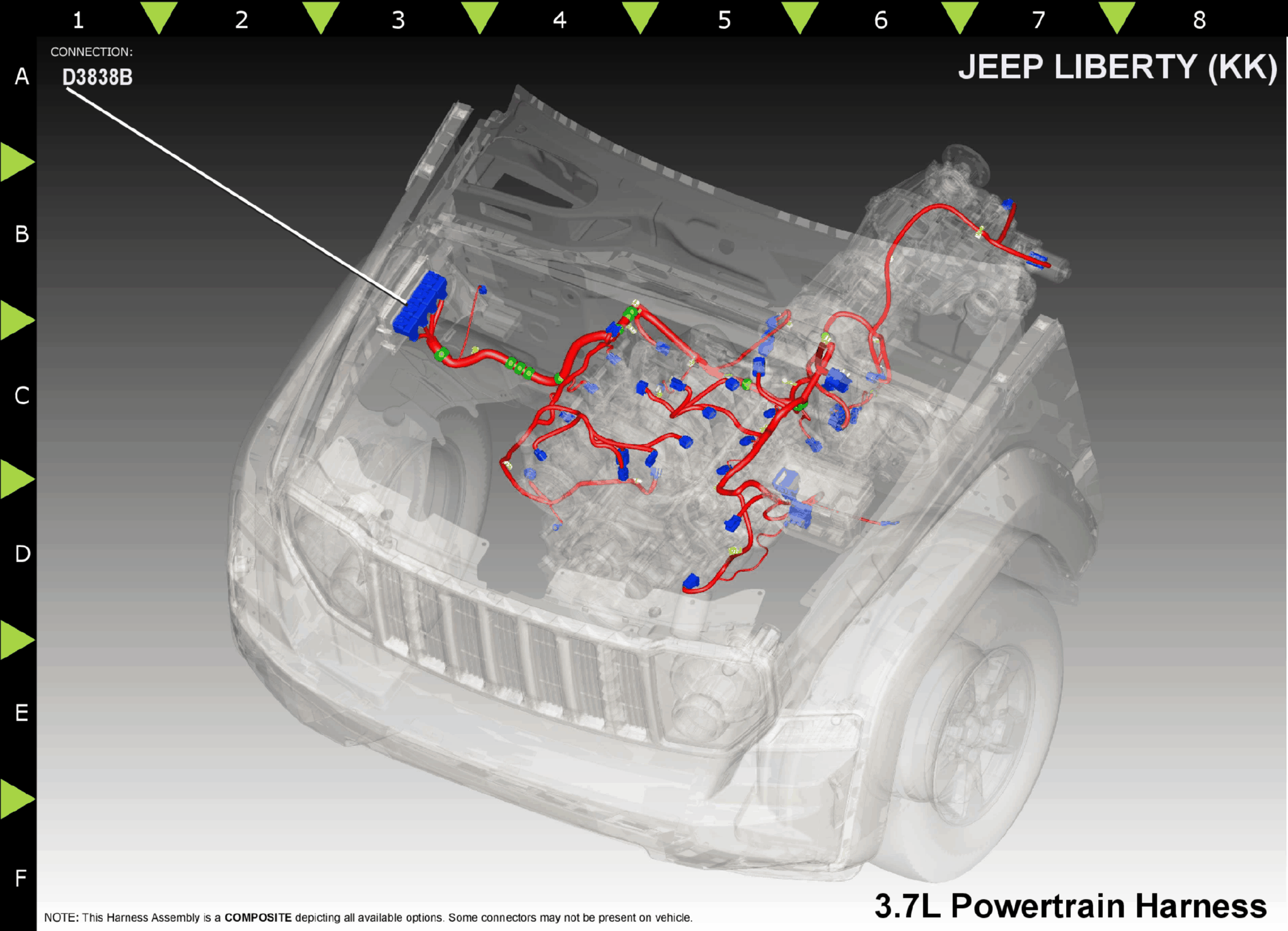

Fig 2: Module-Powertrain Control C2 Component Location (3.7L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B23

VT/BR

MAP SIGNAL

N/A

B14

K11

BR/YL

INJECTOR CONTROL 1

N/A

B13

K12

BR/DB

INJECTOR CONTROL 2

N/A

B28

K122

DB/GY

TP 2 SIGNAL

N/A

K124

DB/GY

ETC MOTOR (+)

N/A

B19

K125

BR/DG

GEN FIELD CONTROL

N/A

B38

K126

DB/LG

ETC MOTOR (-)

N/A

B12

K13

BR/LB

INJECTOR CONTROL 3

N/A

B11

K14

BR/TN

INJECTOR CONTROL 4

N/A

K17

DB/TN

COIL CONTROL 2

N/A

K18

DB/OR

COIL CONTROL 3

N/A

B10

K19

DB/DG

COIL CONTROL 1

N/A

B17

K199

BR/VT

O2 2/1 HEATER CONTROL

N/A

B20

VT/OR

ECT SIGNAL

N/A

B30

K21

DB/LG

IAT SIGNAL

N/A

B21

K22

DG/OR

TP 1 SIGNAL

N/A

B35

K24

BR/LB

CKP SIGNAL

N/A

B36

K242

BR/WT

KS 2 SIGNAL

N/A

B22

K34

DB/LG

EGR SIGNAL

N/A

K35

DB/VT

EGR SOL CONTROL

N/A

K38

BR/OR

INJECTOR CONTROL 5

N/A

B31

K41

DB/LB

O2 1/1 SIGNAL

N/A

B25

K42

DB/YL

KS 1 SIGNAL

N/A

B33

K43

DB/LG

O2 2/1 SIGNAL

N/A

B34

K44

DB/GY

CMP SIGNAL

N/A

K58

BR/VT

INJECTOR CONTROL 6

N/A

B29

K855

BR/OR

5 VOLT SUPPLY

N/A

B27

K900

DB/DG

SENSOR GROUND

N/A

B32

K902

BR/DG

O2 RETURN (UPSTREAM)

N/A

B15

K922

BR/DB

TP SENSOR RETURN

N/A

B37

K924

WT/BR

KS 2 RETURN

N/A

B24

K942

BR/LG

KS 1 RETURN

N/A

B18

K99

BR/LG

O2 1/1 HEATER CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
