Module-Powertrain Control C1 (3.7L) (D3838A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 4-1326726-9

Part Description: NGC HEADER CONNECTION - INDEX A

Connector No: D3838A

Option: 3.7L

Repair Kit Part Number: 05083222AA

Cavity Count: 38

Fig 1: Module-Powertrain Control C1 Connector End View (3.7L)

Courtesy of CHRYSLER

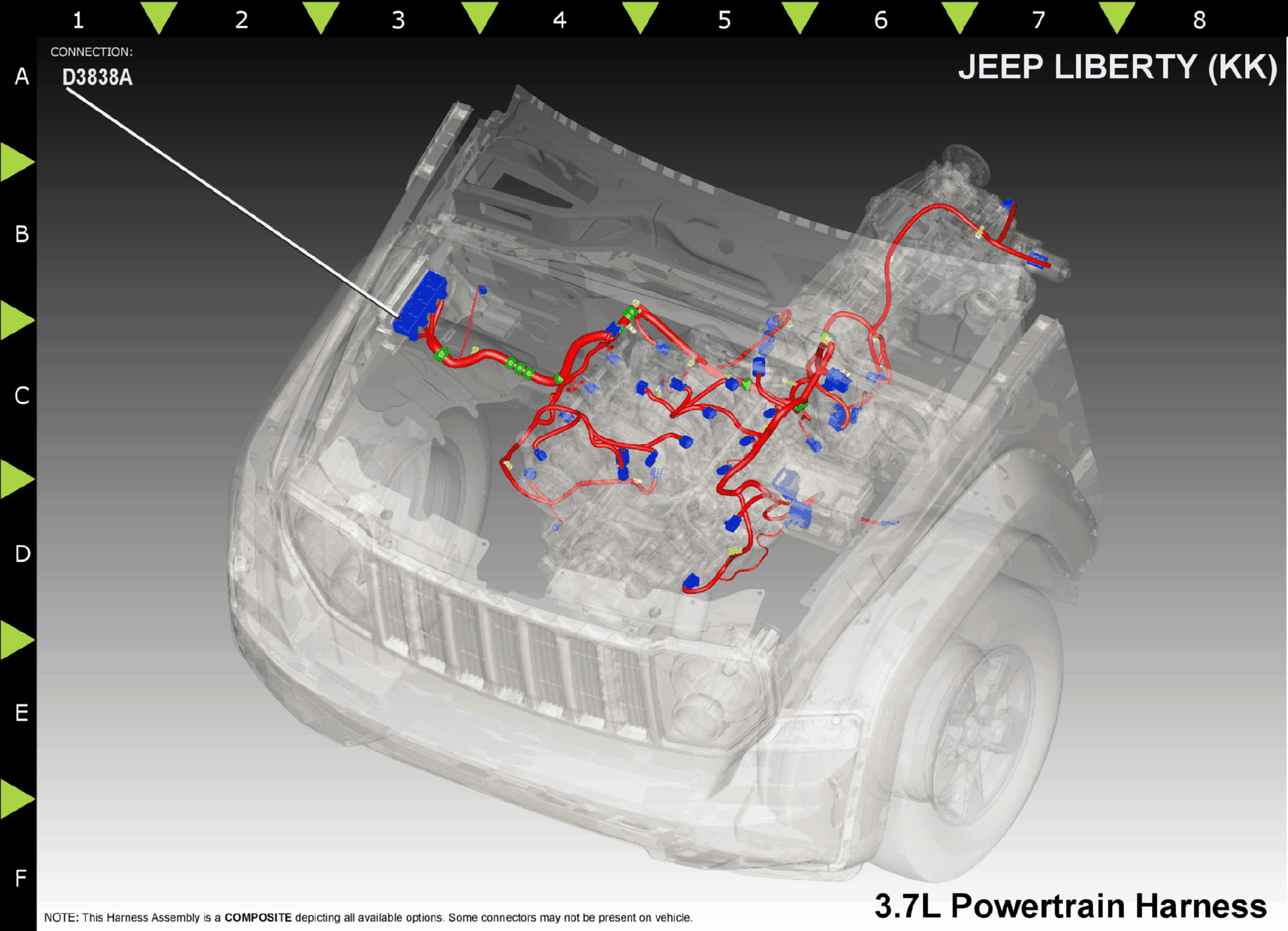

Fig 2: Module-Powertrain Control C1 Component Location (3.7L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A10

A209

FUSED B(+)

N/A

A29

A209

FUSED B(+)

N/A

A24

A803

GY/RD

B(+)

N/A

A35

D64

WT/LB

CAN C (-)

N/A

A34

D65

WT/BK

CAN C (+)

N/A

A11

F202

PK/GY

IGNITION RUN/START CONTROL OUTPUT

N/A

A38

F342

BR/WT

ASD CONTROL OUTPUT

N/A

A20

VT/GY

OIL PRESSURE SIGNAL

N/A

A31

K141

DB/YL

O2 1/2 SIGNAL

N/A

A33

K243

O2 2/2 SIGNAL

N/A

A27

K857

BR/LG

5 VOLT SUPPLY

N/A

A32

K904

DB/DG

O2 RETURN (DOWNSTREAM)

N/A

A18

Z933

GROUND

N/A

Z933

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
