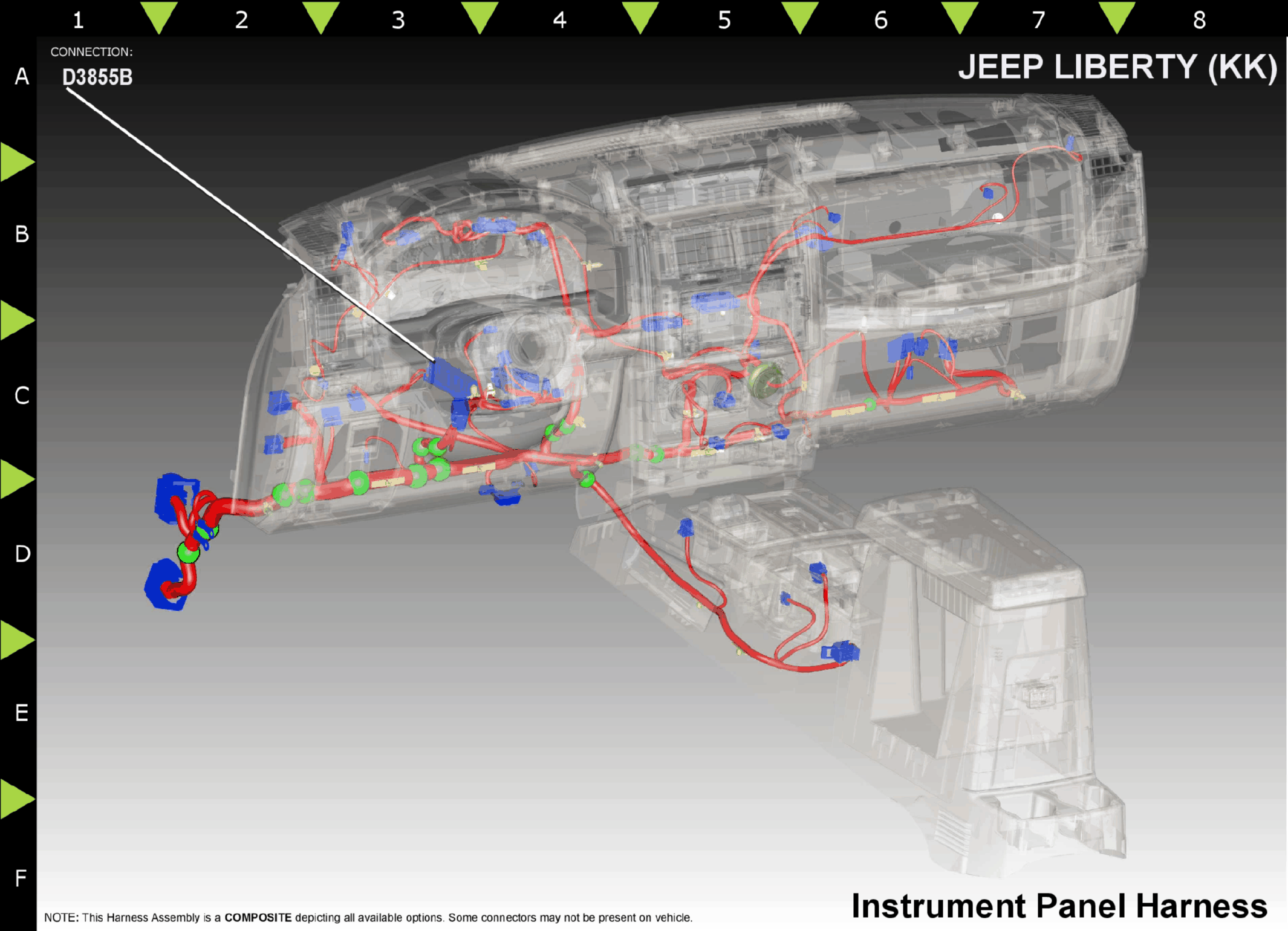

Module-Transmission Control C2 (D3855B)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 965224-1
Part Description: CONNECTOR - JPT KONTAKT SYSTEM
Connector No: D3855B
Option: Standard
Repair Kit Part Number: 68040483AA
Cavity Count: 12
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 12 | T70 | YL | 20 | INPUT SPEED 1 (N2) SIGNAL | N/A | ||
| 13 | T72 | YL/DB | 20 | SENSOR SUPPLY | N/A | ||
| 14 | T60 | YL/BK | 20 | OD CONTROL | N/A | ||
| 15 | T73 | YL/GY | 20 | 3-4 SOLENOID CONTROL | N/A | ||
| 16 | T74 | YL/LG | 20 | 2-3 SOLENOID CONTROL | N/A | ||
| 17 | T75 | YL/LB | 20 | TCC SOLENOID CONTROL | N/A | ||
| 33 | T13 | DG/VT | 20 | SPEED SENSOR GROUND | N/A | ||
| 34 | T54 | VT | 20 | TRANSMISSION TEMPERATURE SIGNAL | N/A | ||
| 35 | T71 | YL/PK | 20 | INPUT SPEED 2 (N3) SIGNAL | N/A | ||
| 36 | T76 | YL/TN | 20 | MODULATION PRESSURE CONTROL | N/A | ||
| 37 | T77 | YL/BR | 20 | SHIFT PRESSURE CONTROL | N/A | ||
| 38 | T78 | LB | 20 | SOLENOID SUPPLY | N/A | ||
|
|||||||
