Module-Occupant Classification C2 (D3875B)

Harness-Family: Seat_Pass

Color: BLACK

Gender: FEMALE

Part Number: 638518-8

Part Description: CONNECTOR - PLUG ASSEMBLY KEY CODE -D

Connector No: D3875B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 12

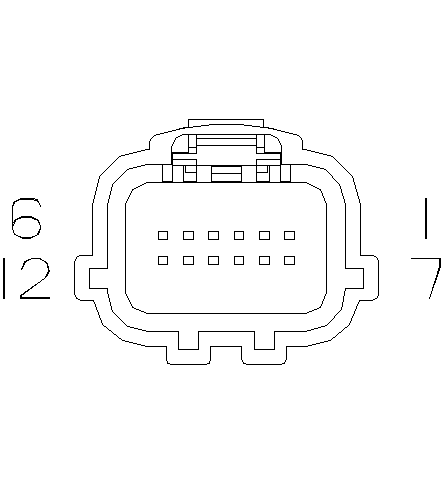

Fig 1: Module-Occupant Classification C2 Connector End View

Courtesy of CHRYSLER

Fig 2: Module-Occupant Classification C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R701

SEAT WEIGHT SENSOR 5 VOLT

N/A

R705

LG/OR

SEAT WEIGHT LEFT REAR SENSOR SIGNAL

N/A

R706

LB/OR

SEAT WEIGHT RIGHT REAR SENSOR SIGNAL

N/A

R717

LG/DG

SEAT WEIGHT LEFT FRONT SENSOR SIGNAL

N/A

R718

LB/DG

SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL

N/A

B12

R728

LB/YL

SEAT WEIGHT SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
