U0171-Lost Communication W/Up-Front Right Satellite Acceleration Sensor: Notes

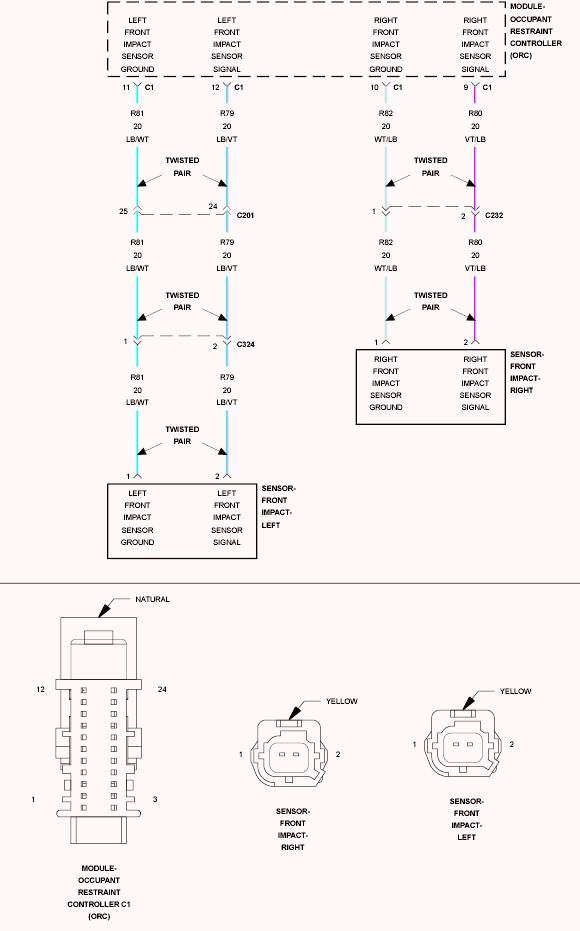

Fig 1: Front Impact Sensor Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
