P0161-O2 Sensor 2/2 Heater Performance: Notes

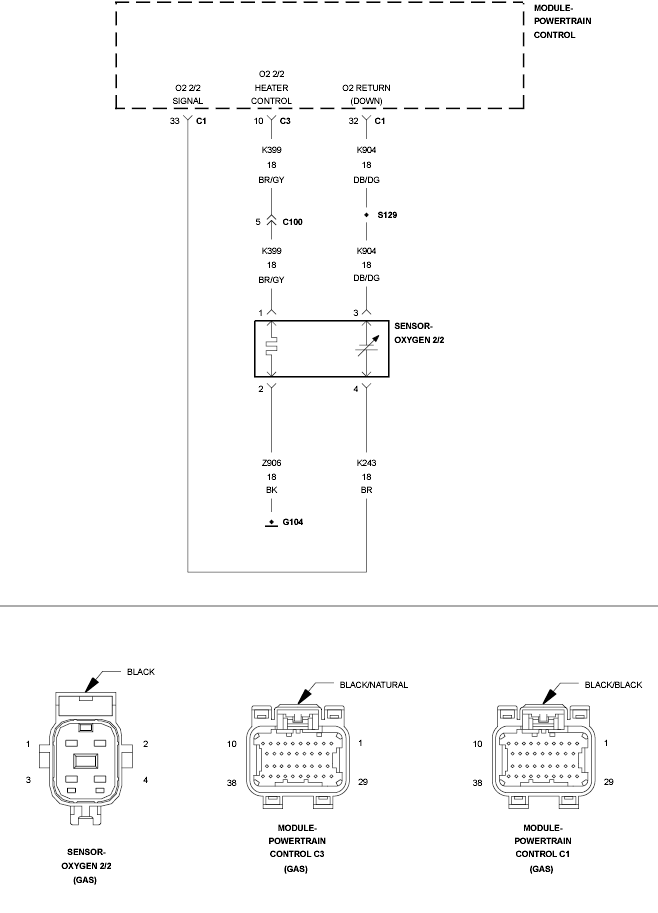

Fig 1: O2 Sensor 2/2 Heater Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
