3.8L Engine
Courtesy of CHRYSLER GROUP, LLC

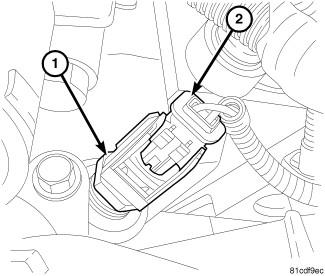

| 1 - ENGINE COOLANT TEMPERATURE SENSOR (ETC) |
| 2 - ELECTRICAL CONNECTOR |
- Apply sealant to ECT sensor threads (new replacement ECT sensors will have sealant already applied).
- Install ECT sensor (1) into intake manifold. Tighten to 11 N.m (8 ft. lbs.) torque.
- Connect electrical connector (2).
- Fill cooling system. Refer to STANDARD PROCEDURE .
- Install air cleaner housing. Refer to BODY, AIR CLEANER, INSTALLATION
