Sun Sensor - Installation

INSTALLATION

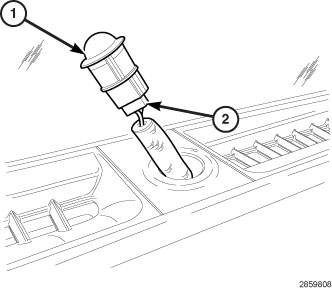

1. Position the sun sensor (1) to the top of the instrument panel and connect the wire harness connector (2) to the sensor.

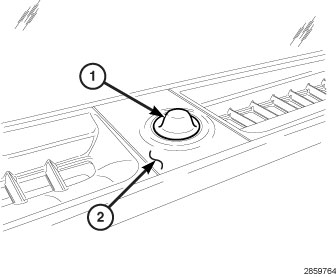

2. Align the tab on the sun sensor (1) with the slot in the opening in the defroster grille (2) and install the sensor onto the grille. Make sure that the sensor is fully engaged to the defroster grille.
3. Reconnect the negative battery cable.
