Installation

INSTALLATION

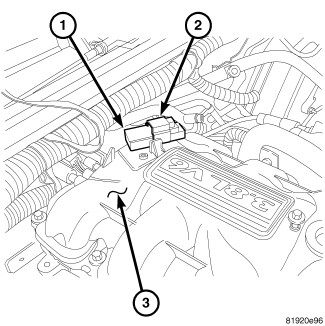

The MAP sensor (1) is installed into the rear of the upper intake manifold (3).

1. Check the condition of the MAP sensor O-ring and replace if necessary.
2. Clean the MAP sensor mounting base.
3. Push down on the MAP sensor while rotating clockwise about 1/4 turn for installation.
4. Connect the MAP sensor electrical connector (2).
