Oxygen Sensor - Installation

INSTALLATION

The threads of new oxygen sensors are factory coated with anti-seize compound to aid in removal. Do Not add any additional anti-seize compound to the threads of a new oxygen sensor.

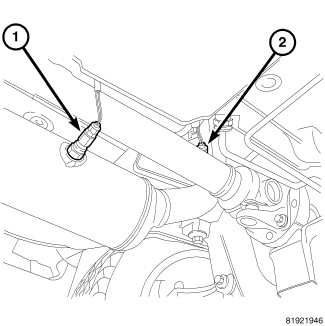

1. Install the O2 sensor (1) or (2) and tighten to 41 Nm (30 ft. lbs.).
2. Connect the O2 sensor electrical connector.
3. Lower the vehicle.
