Intelligent Battery Sensor (IBS) - Installation

INSTALLATION

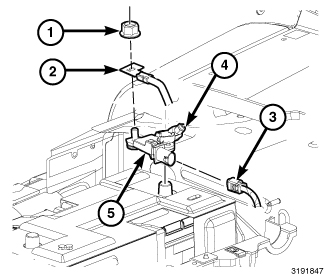

1. Install the Intelligent Battery Sensor (IBS) (5) on the negative post of the battery.
2. Tighten the captive nut (4).Tighten to 8 Nm (72 In. Lbs.)
3. Connect the IBS harness connector (3) to the IBS (5).
4. Install the negative battery cable to the IBS (2).
5. Install the IBS negative battery cable retainer (1).Tighten to 15 Nm (11 Ft. Lbs)
