Power Mirror Switch

DIAGNOSIS AND TESTING - POWER MIRROR SWITCH - LHD





1. Disconnect and isolate the battery negative cable.
2. Remove power mirror switch Power Mirror Switch - Removal.

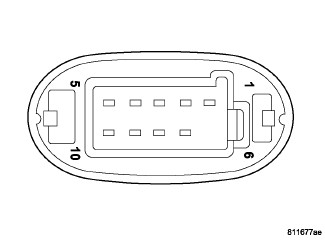

3. Using an ohmmeter, test for continuity between the terminals of the switch as shown in the Mirror Switch Test table.
4. If test results are not obtained as shown in the Mirror Switch Test table, replace the switch.

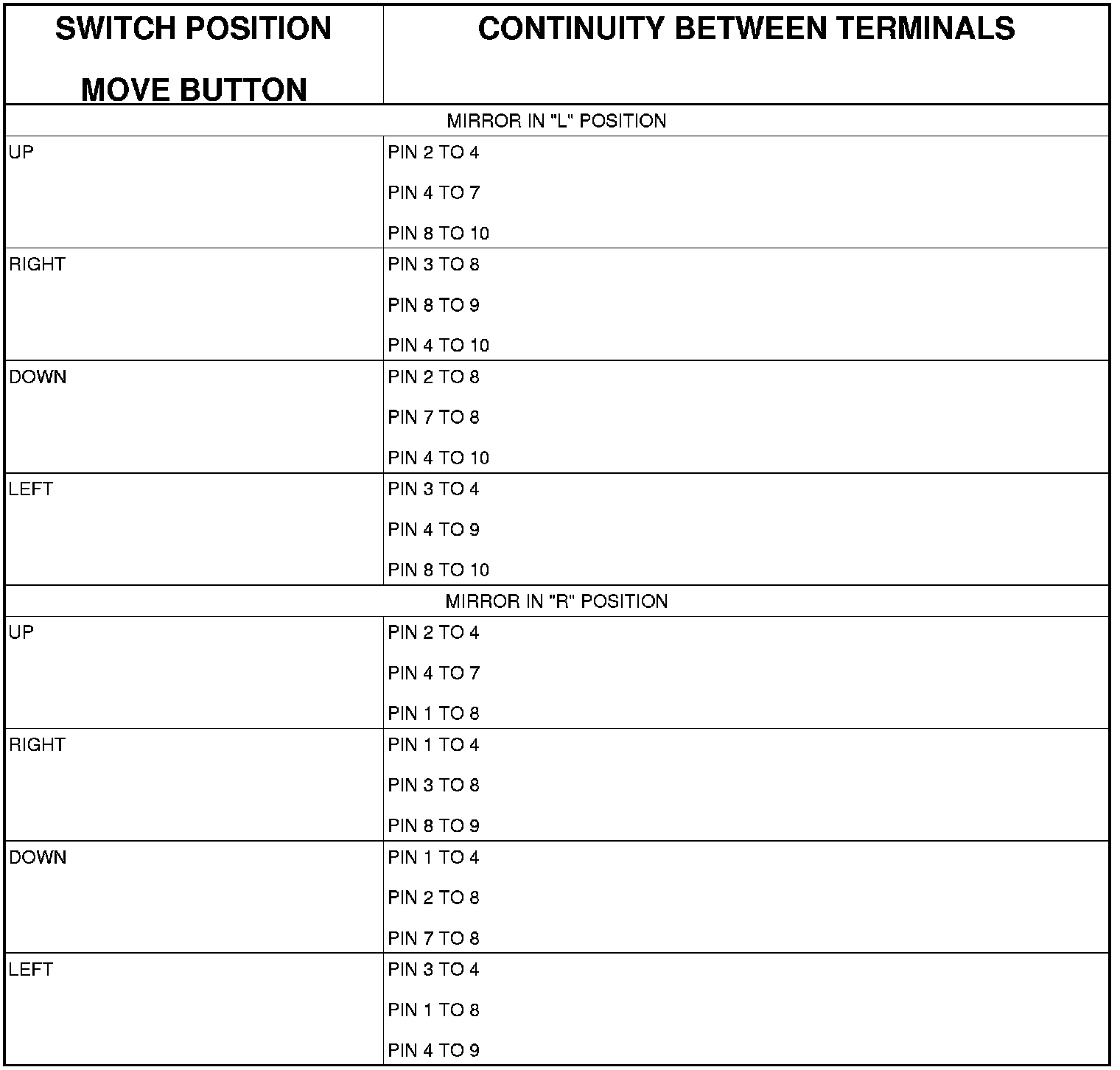

MIRROR SWITCH TEST TABLE
