Sound Proofing / Insulation: Locations

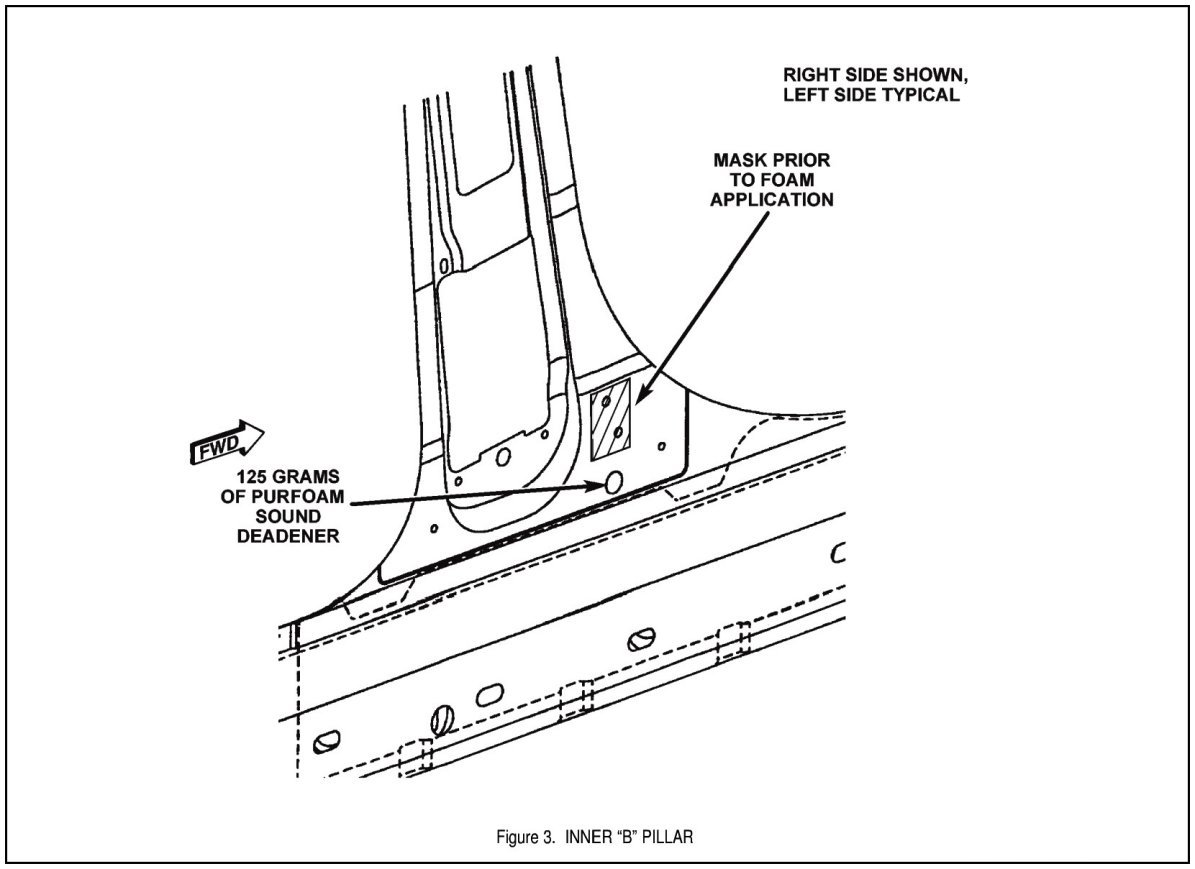

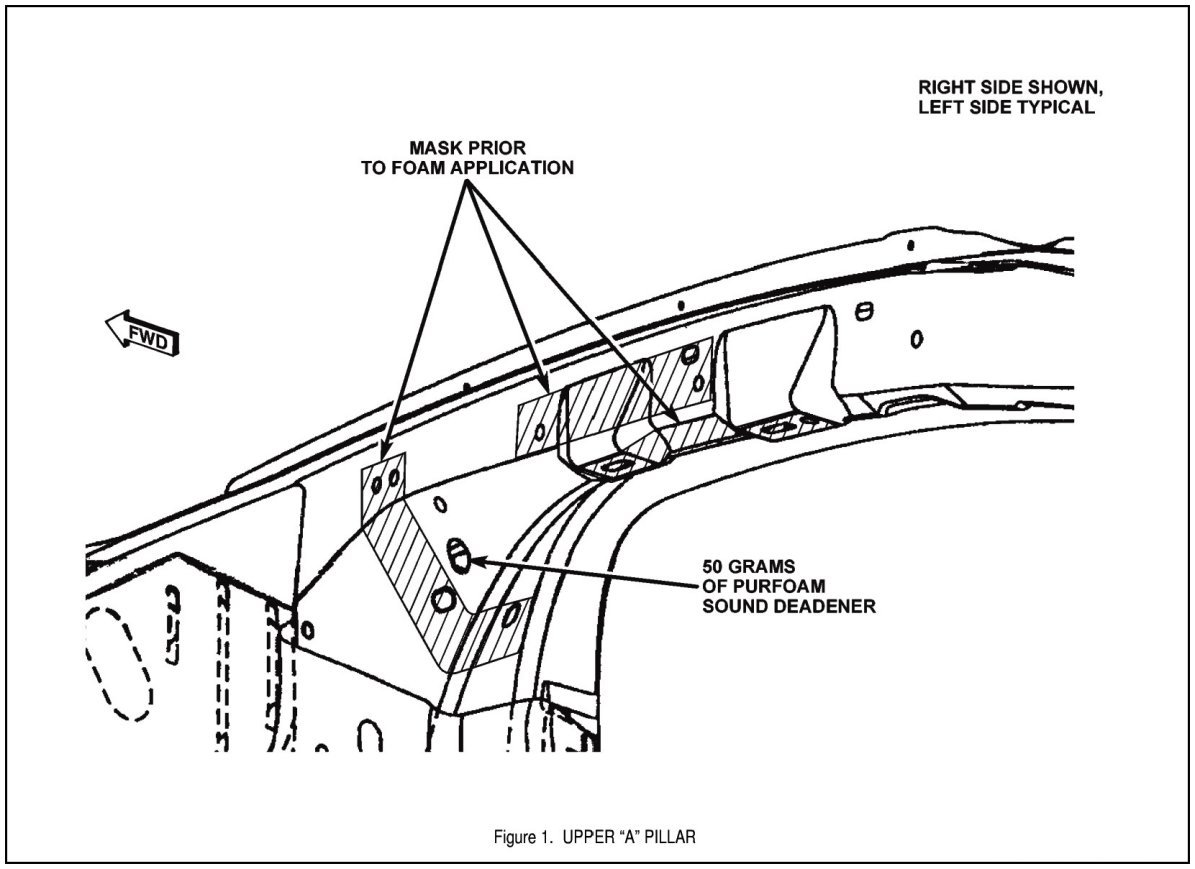

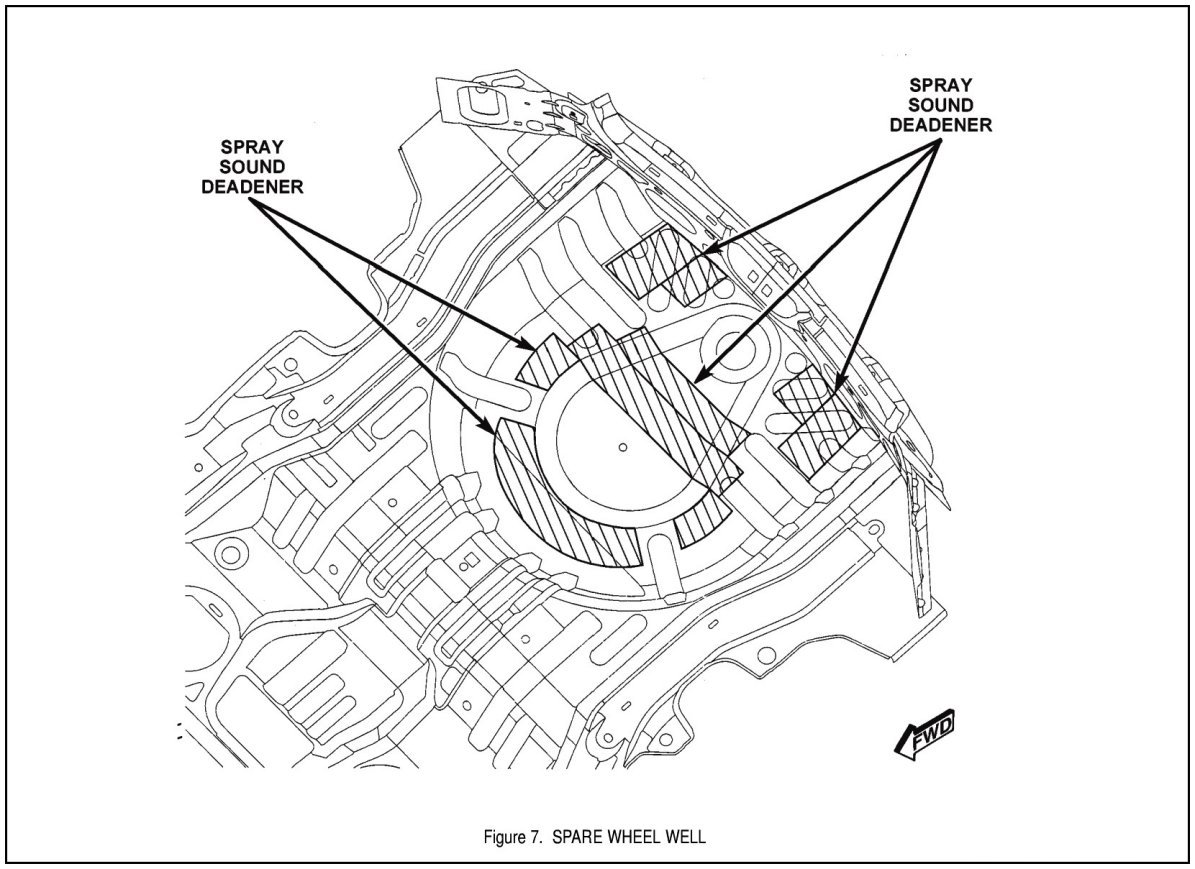

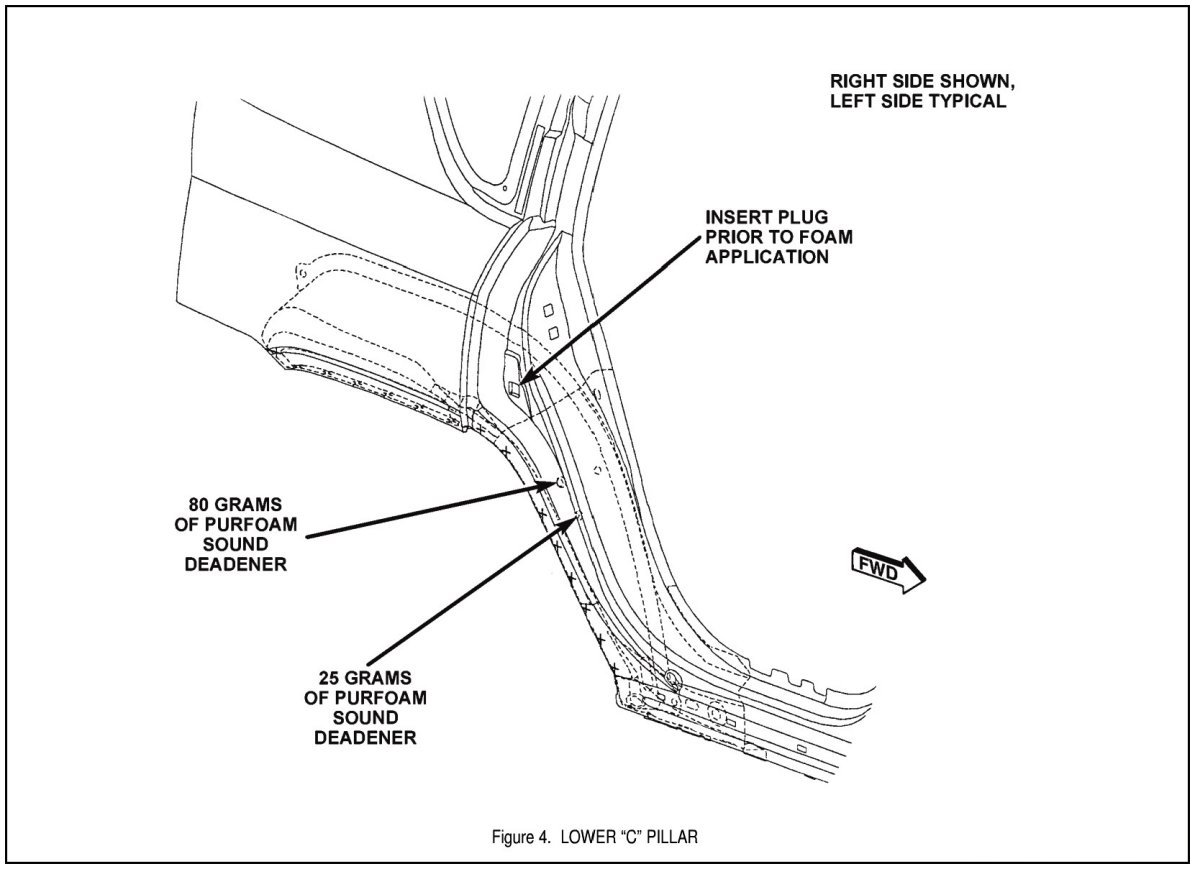

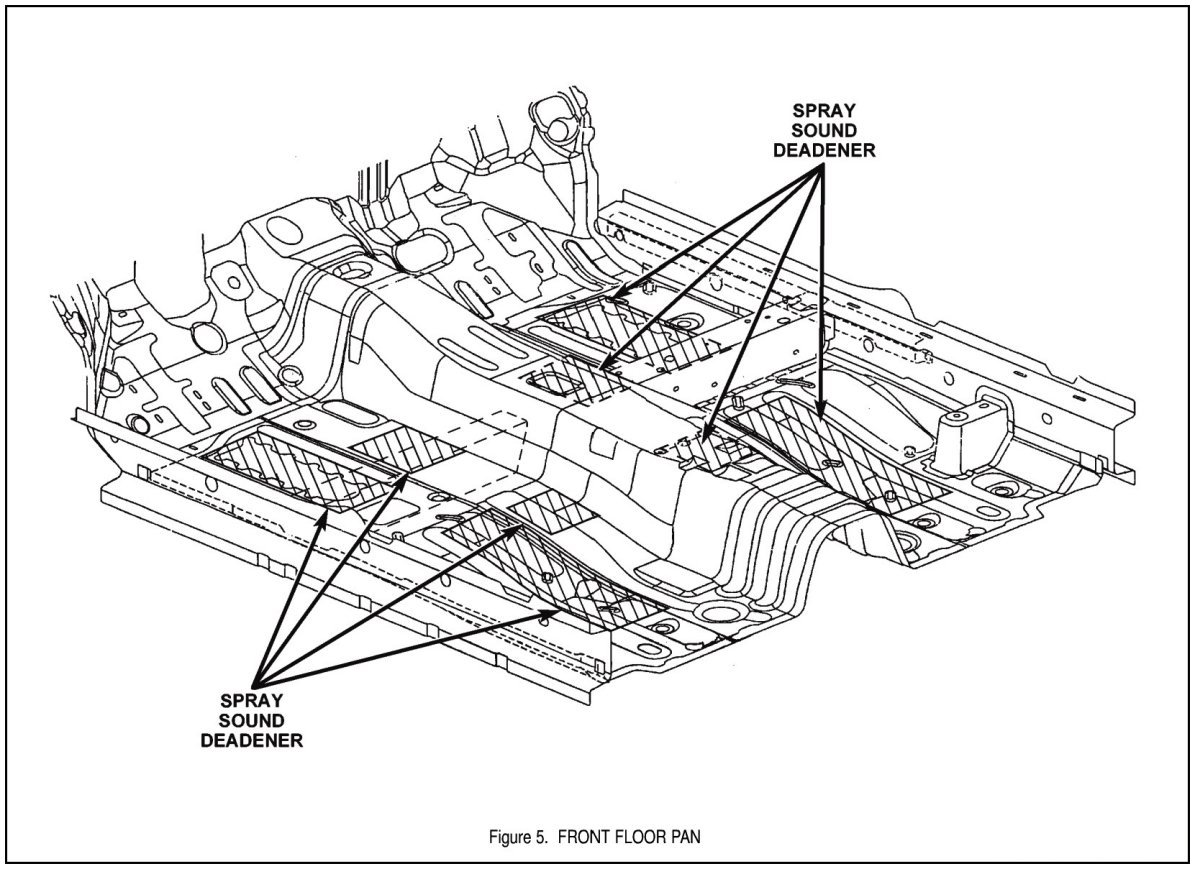

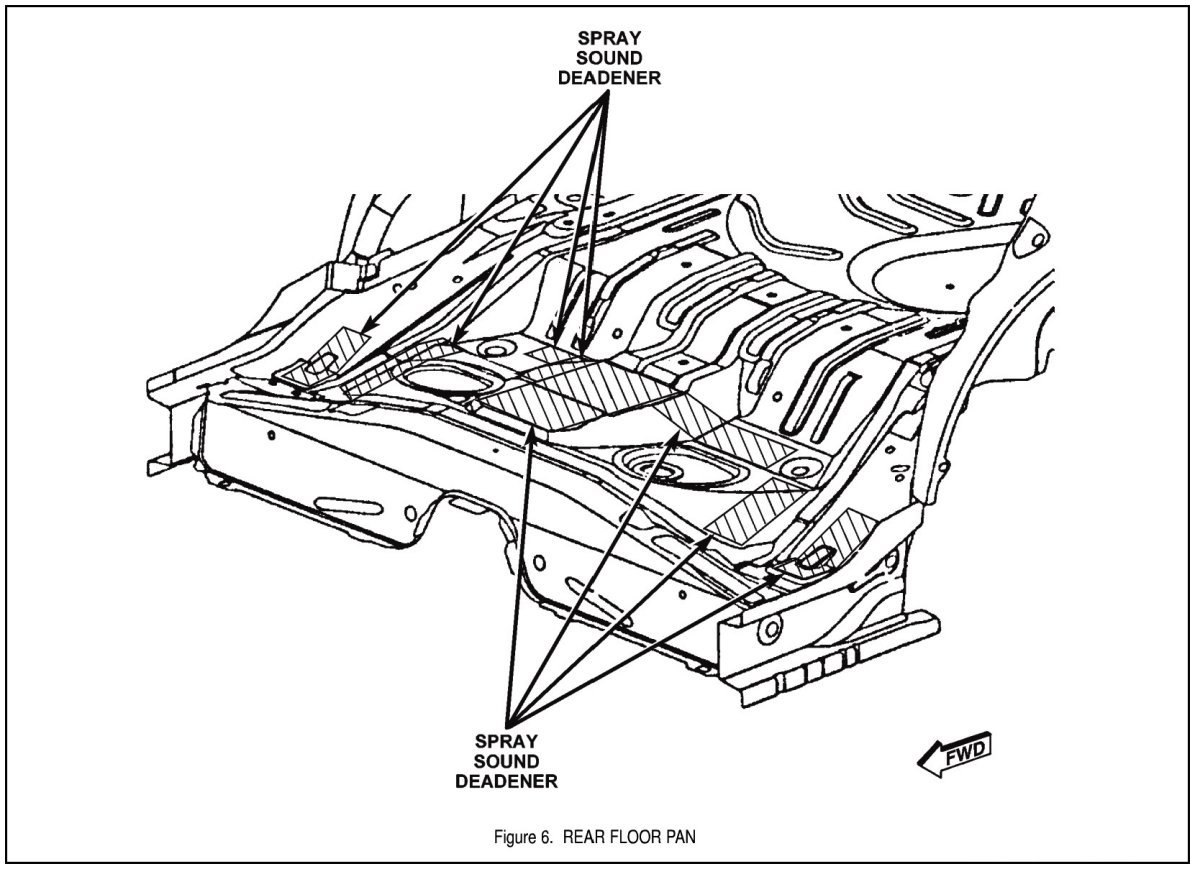

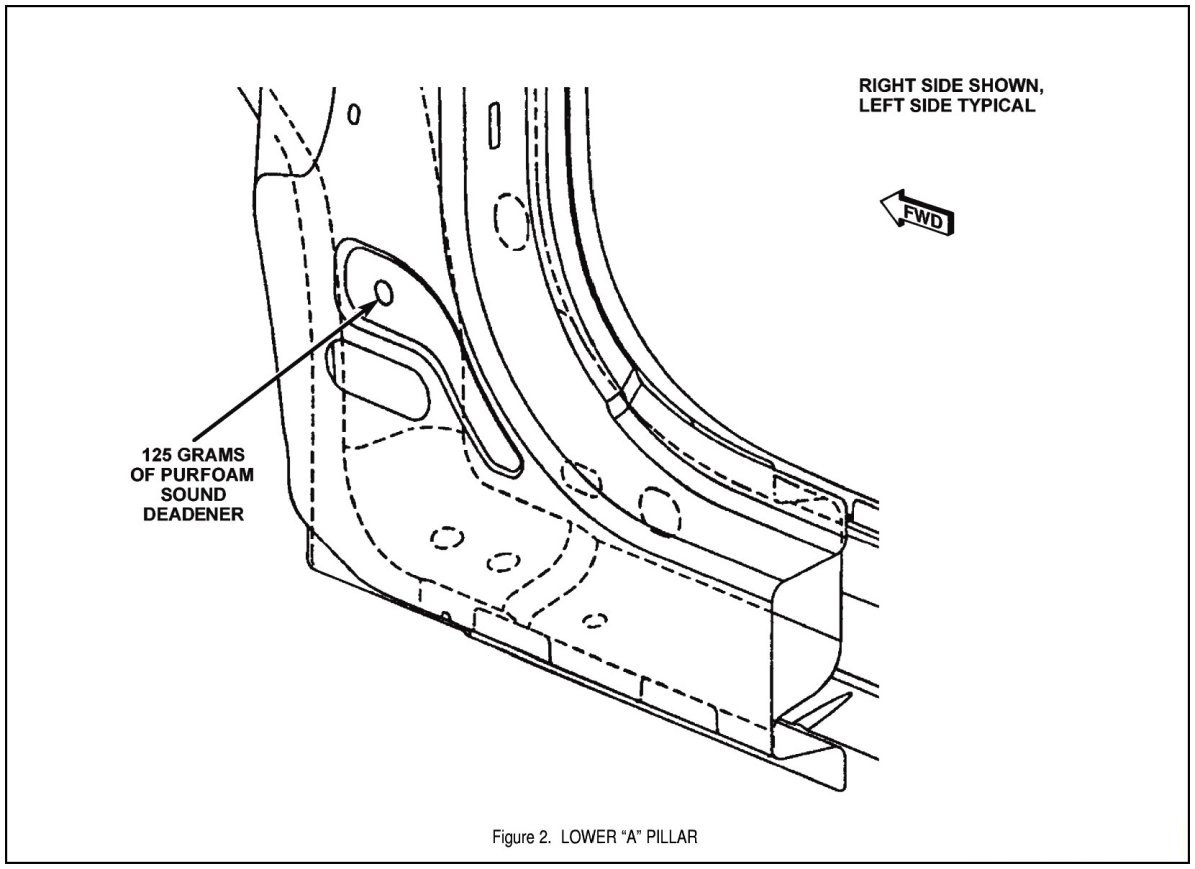

NVH/STRUCTURAL FOAM/SOUND DEADENER LOCATIONS


Preferred Mopar Products:

- Expandable Foam - Part No. 05142864AA
- Dispenser - Part No. 05016570AA
