Home >> Jeep >> 2012 >> Compass 2WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Integrated Power Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

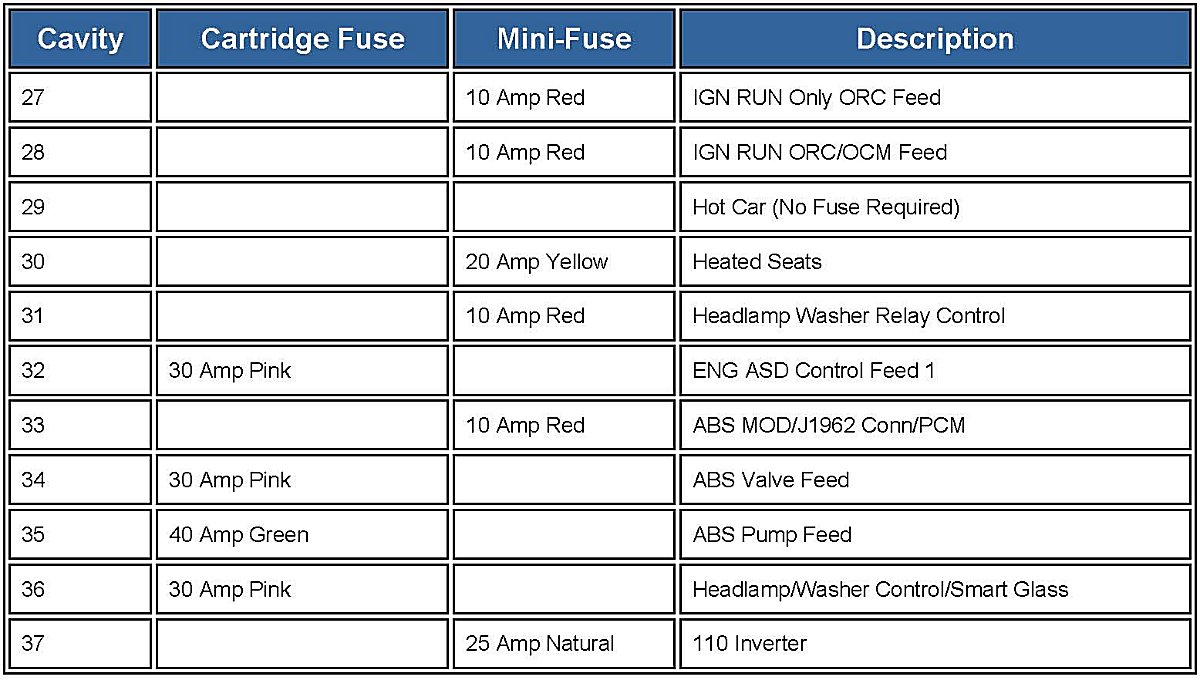

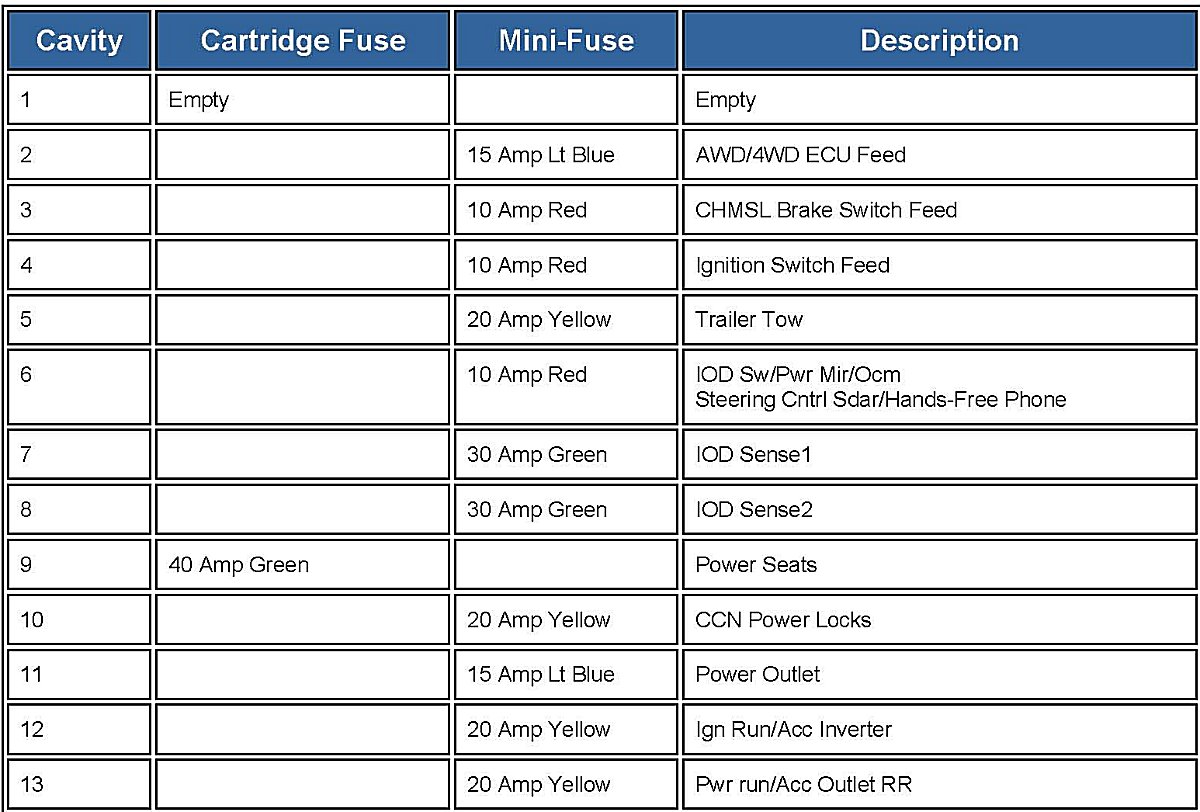

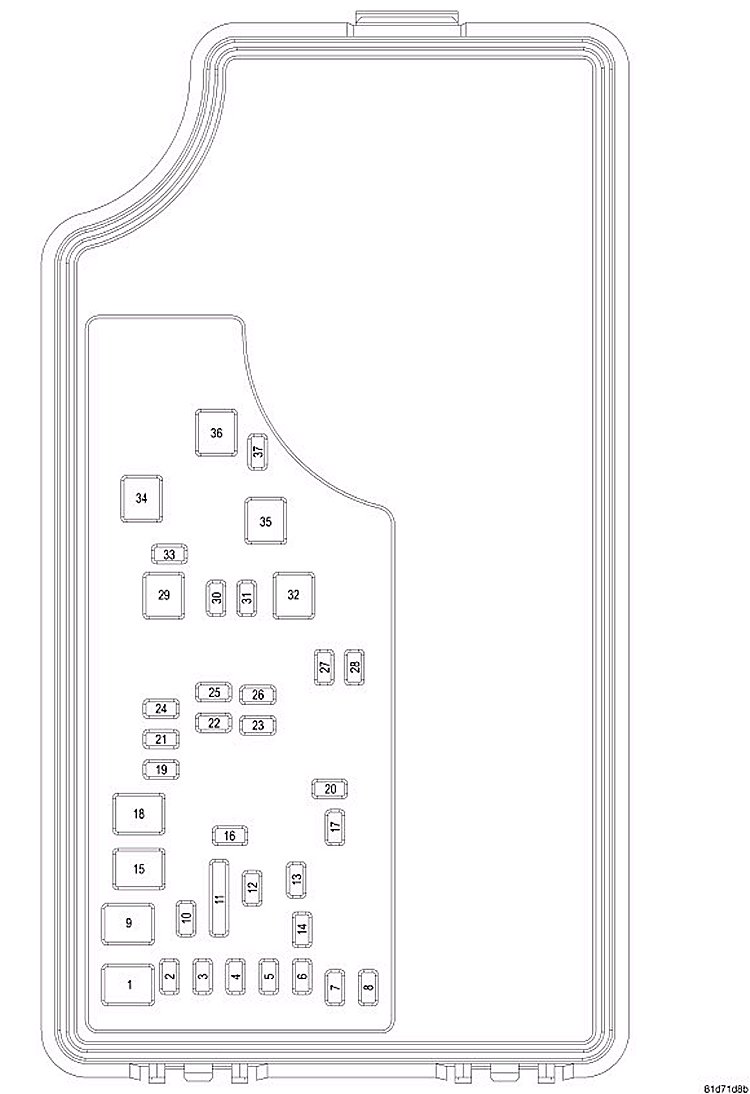

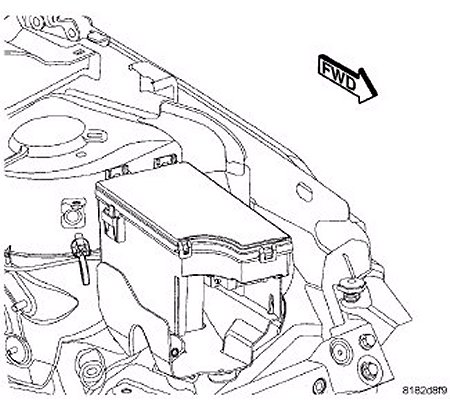

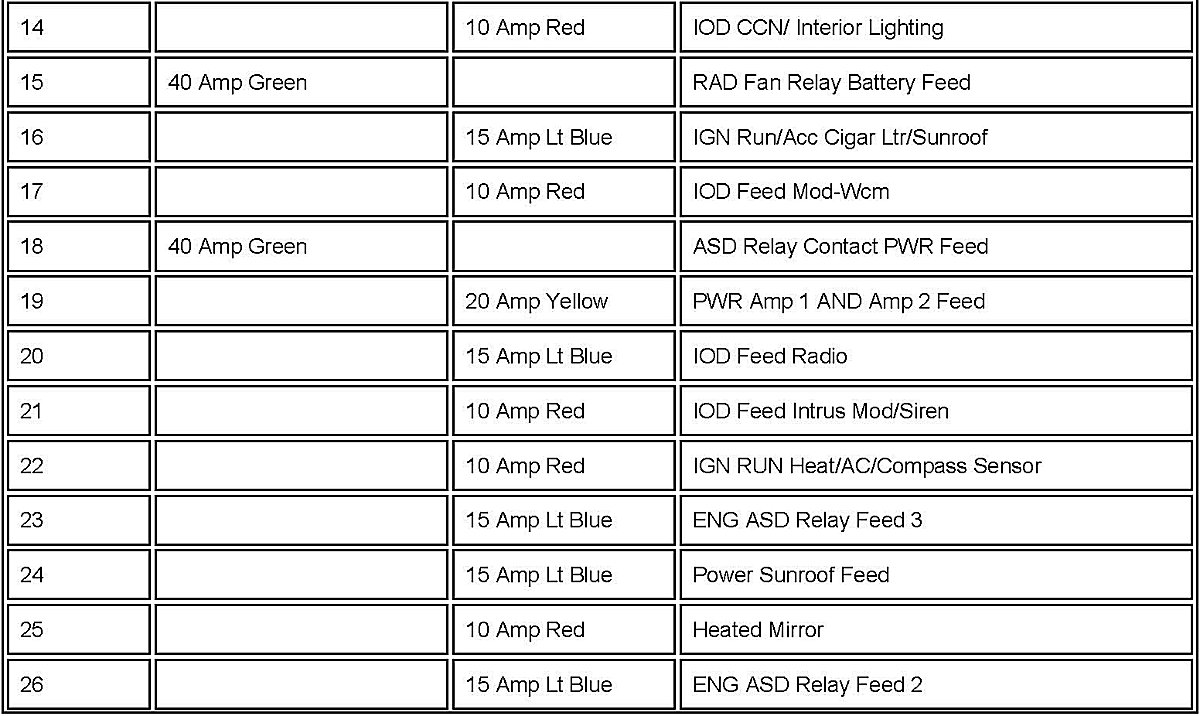

Integrated Power Module
