Manual Transmission/Transaxle

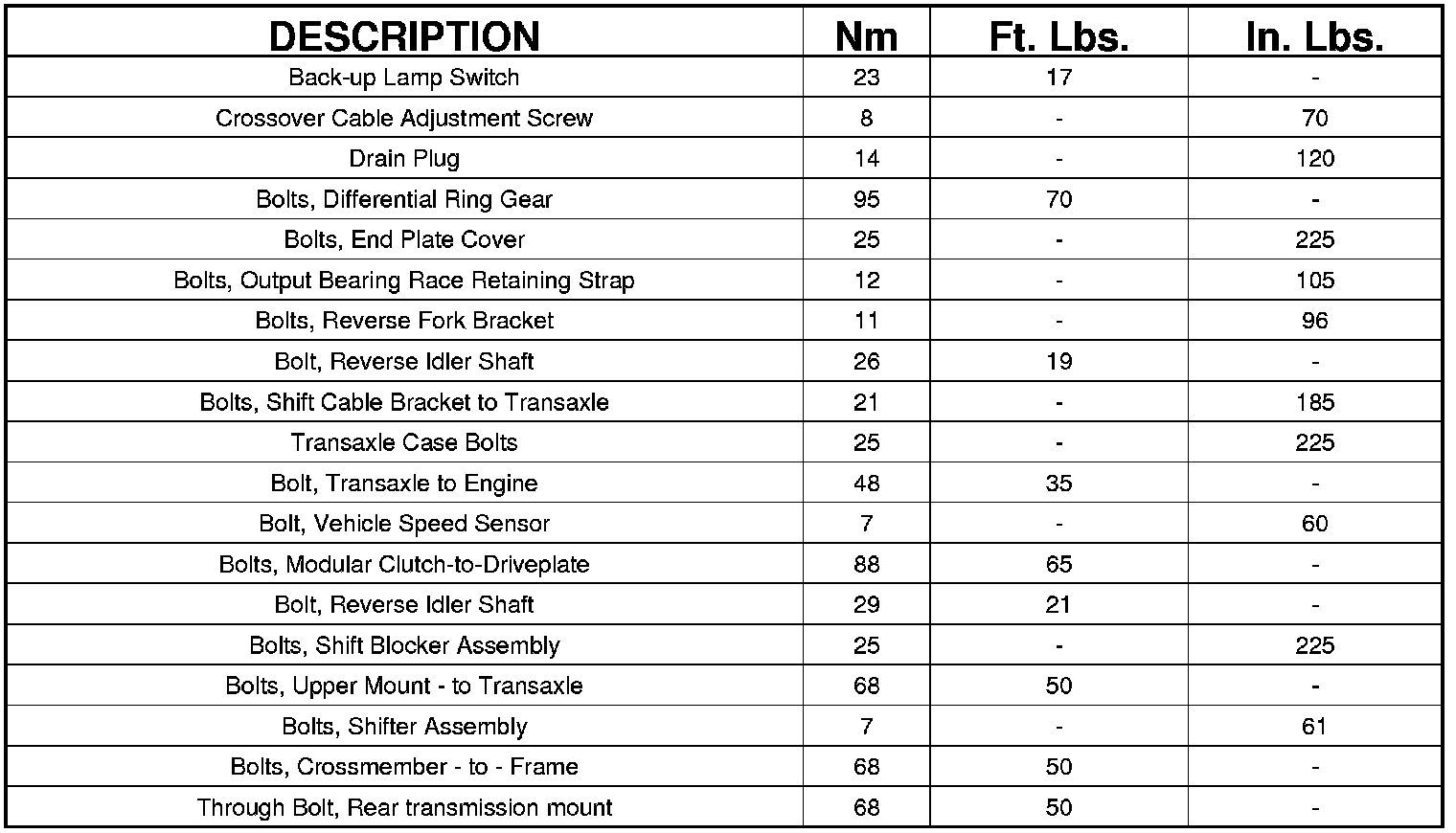

SPECIFICATIONS






Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.
