Cable, Gearshift Control: Installation: Installation

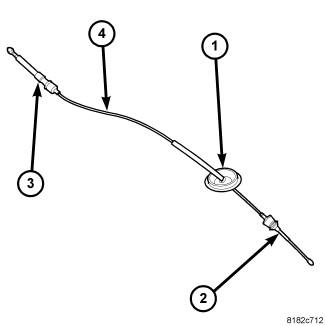

Fig 1: Shifter Cable

Courtesy of CHRYSLER GROUP, LLC

1. Install the shifter cable (1, 2) through the bulkhead and into the passenger compartment.

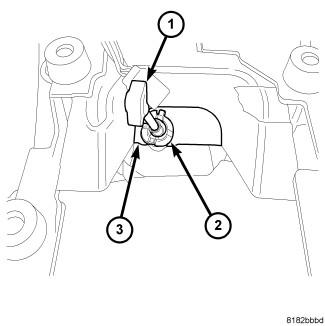

   Fig 2: Clip And Cable

   Courtesy of CHRYSLER GROUP, LLC
2. Install the cable into the bracket (2) at bulkhead (1).

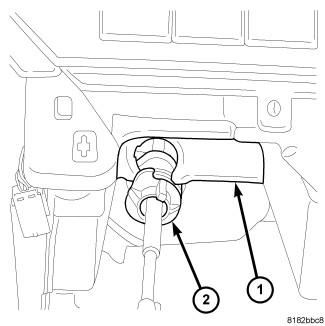

   Fig 3: Shifter Cable Clip AT Floor

   Courtesy of CHRYSLER GROUP, LLC
3. Insure that the cable clips into place.
4. Tighten the hold down bolts at the air bag module. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, INSTALLATION .
5. Install the shifter. Refer to SHIFTER, TRANSMISSION, INSTALLATION .

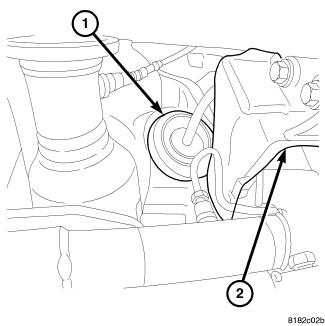

   Fig 4: Shifter Cable Grommet

   Courtesy of CHRYSLER GROUP, LLC
6. Install the shifter cable grommet (1) at the bulkhead.

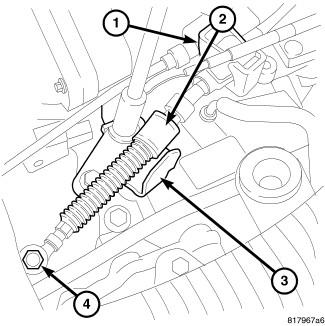

   Fig 5: Shifter Cable And Bracket

   Courtesy of CHRYSLER GROUP, LLC
7. Clip the cable (2) into the bracket (1) install the nut (4) over the shifter cable at the transmission shift lever. Refer to CABLE, GEARSHIFT CONTROL, ADJUSTMENTS .

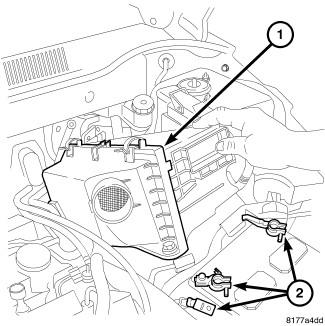

   Fig 6: Air Cleaner Assembly

   Courtesy of CHRYSLER GROUP, LLC
8. Connect the negative battery cable (2).
9. Install the air box (1)
