Module, Transmission Control: Installation: Installation

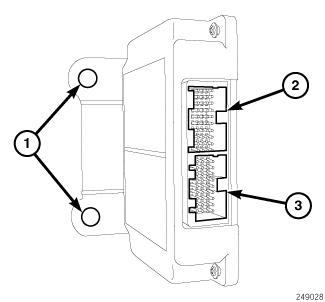

Fig 1: TCM Out

Courtesy of CHRYSLER GROUP, LLC

Install TCM mounting bracket holes (1) over the two studs on the bulkhead.

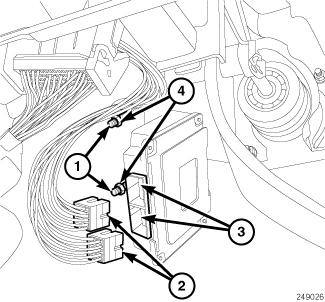

Fig 2: TCM Unplugged
Courtesy of CHRYSLER GROUP, LLC
Install the two nuts (4) to mounting studs (1) on the bulkhead.

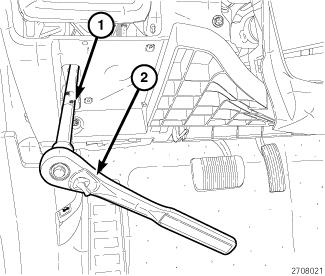

Fig 3: TCM Mounting Nuts
Courtesy of CHRYSLER GROUP, LLC
Using a ratchet (2) and long extension (1) loosely tighten the nuts then torque to 15 N.m (130 in. lbs.).

Fig 4: TCM Unplugged
Courtesy of CHRYSLER GROUP, LLC
Plug in electrical connectors (2) to TCM (3).

NOTE:

If a new TCM is installed a learn procedure must be performed.
