Module, Park Assist: Description: Description

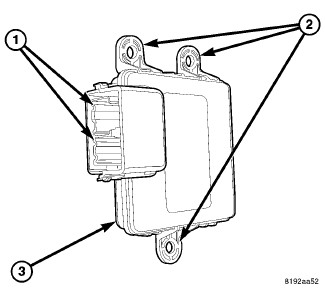

The Park Assist Module (3) is secured with three push-in plastic fasteners through three mounting tabs (2) integral to the module housing to the right inner quarter panel above the right rear wheel housing. The module is concealed beneath the quarter inner trim panel. Concealed within the molded plastic park assist module housing is a microprocessor and the other electronic circuitry of the module. The module housing is sealed to enclose and protect the internal electronic circuitry. The module software is flash programmable.
Two connector receptacles (1) containing terminal pins are integral to the forward-facing side of the housing. The module is connected to the vehicle electrical system through two dedicated take outs and connectors of the body wire harness.
For more information on how the park assist module operates. Refer to MODULE, PARK ASSIST, OPERATION . The park assist module cannot be adjusted or repaired and, if damaged or ineffective, it must be replaced, for more information. Refer to MODULE, PARK ASSIST, REMOVAL .
