Module, Electronic Shift: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

Apply the parking brake.
Using a trim stick or equivalent, carefully release the retaining clips and lift the shifter bezel.

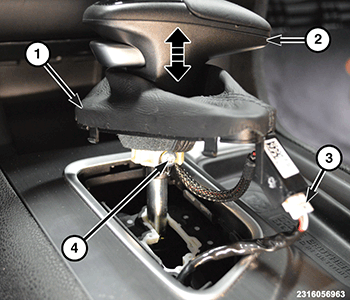

Fig 1: Shifter Bezel, Knob, Connector & Screw
Courtesy of CHRYSLER GROUP, LLC
Unplug the wire harness connector (3) between the knob and lower base.

Fig 2: Shifter Bezel, Knob, Connector & Screw
Courtesy of CHRYSLER GROUP, LLC
Remove the shifter knob screw (4) and remove the shifter knob (2) and shifter bezel (1).

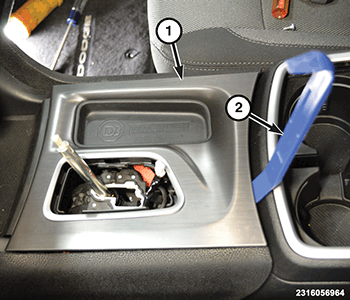

Fig 3: Bezel Panel & Trim Stick
Courtesy of CHRYSLER GROUP, LLC
Using a trim stick (2) or equivalent, starting at the rear of the console bezel panel (1), carefully release the retaining clip and lift the console bezel panel. Disconnect the wire harness connectors and remove the console bezel panel.

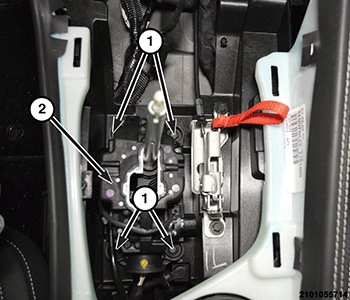

Fig 4: Shifter Assembly & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the shifter bolts (1) and lift the shifter assembly (2) up enough to allow access to the shifter wire harness connector.

Fig 5: Shifter Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the shifter wire harness connector (1).
Remove the shifter from the vehicle.
