Radiator, Engine Cooling: Installation: 6.2L
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
- Engage the cooling fan assembly into lower tabs on the radiator.

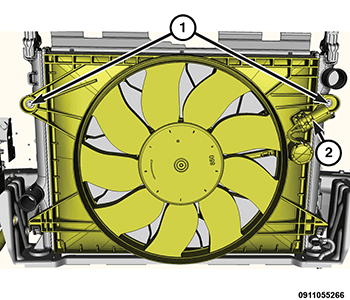

- Install the cooling fan assembly to radiator mounting bolts (1) and tighten to the proper specification. Refer to SPECIFICATIONS .
- Install the radiator into engine compartment and seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support.

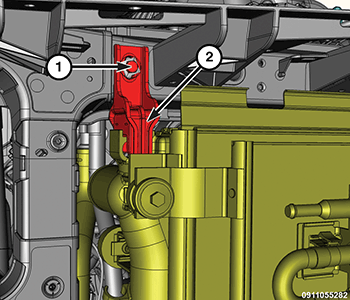

- Install the upper radiator isolator (2) and tighten the bolts (1) to the proper specification. Refer to SPECIFICATIONS .
- Install the Low Temperature Radiator (LTR). Refer to RADIATOR, LOW TEMPERATURE, INSTALLATION .

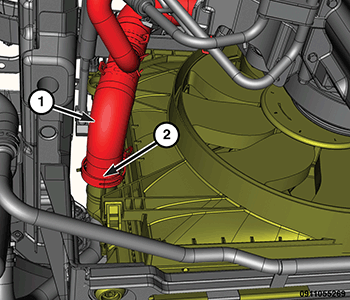

- Install the lower radiator hose (1) and secure the clamp (2).NOTE:
Ensure that the hose is fully seated on the radiator port and that the clamp in not resting on the port bead.
- Install the upper radiator hose and secure the clamp.NOTE:
Ensure that the hose is fully seated on the radiator port and that the clamp in not resting on the port bead.
- Connect the wire harness connector to the cooling fan.
- Fill the cooling system with coolant. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
- Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission for the correct fluid levels.
