Module Unlocked

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE:

Before starting this procedure refer to the MODULE/PROGRAMMING ORDER REPLACEMENT GUIDE chart for the correct order in which to replace and program the modules. Refer to STANDARD PROCEDURE .

NOTE:

If a NEW column lock module has been installed, a new Wireless Ignition Node (WIN) must also be installed. For scan tool programming module guide. Refer to STANDARD PROCEDURE .

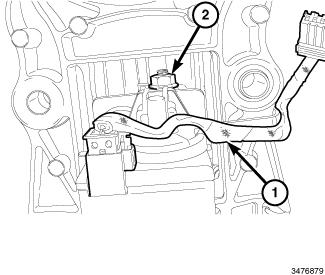

Fig 1: Steering Column Lock Module Retainer & Steering Column Lock Module Jumper Harness
GC0144899Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the steering column. Refer to COLUMN, REMOVAL .
  3. Remove the steering column lock module retainer (1).
  4. Remove the steering column lock module jumper harness (2).

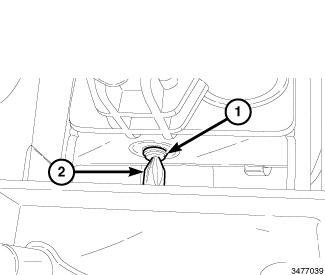

    Fig 2: Screw Driver & Threaded Stud
    GC0144902Courtesy of CHRYSLER GROUP, LLC
  5. Using a pocket screw driver (2) or equivalent push in the threaded stud (1) and remove the steering column lock module.
  6. Remove the steering column lock module.
